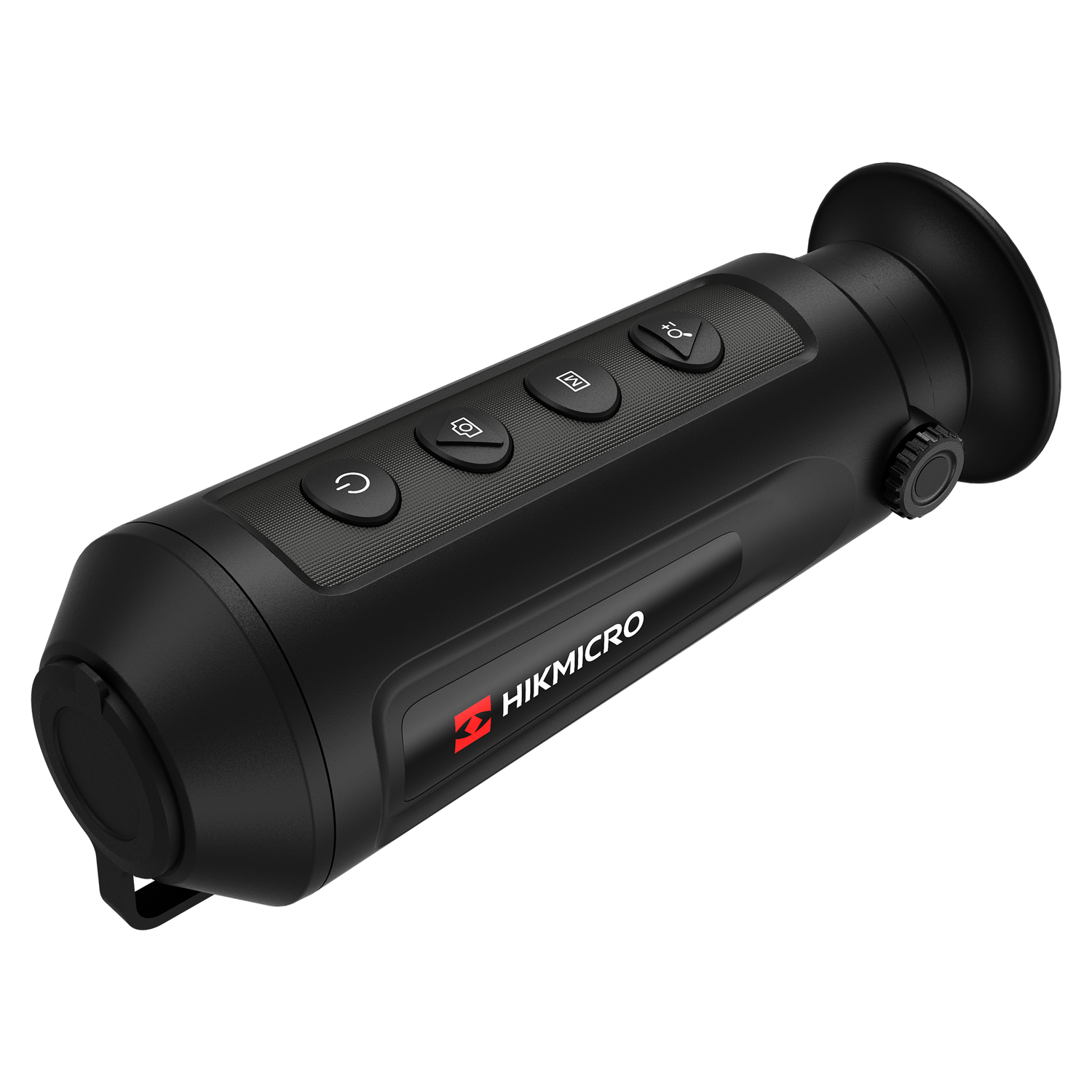

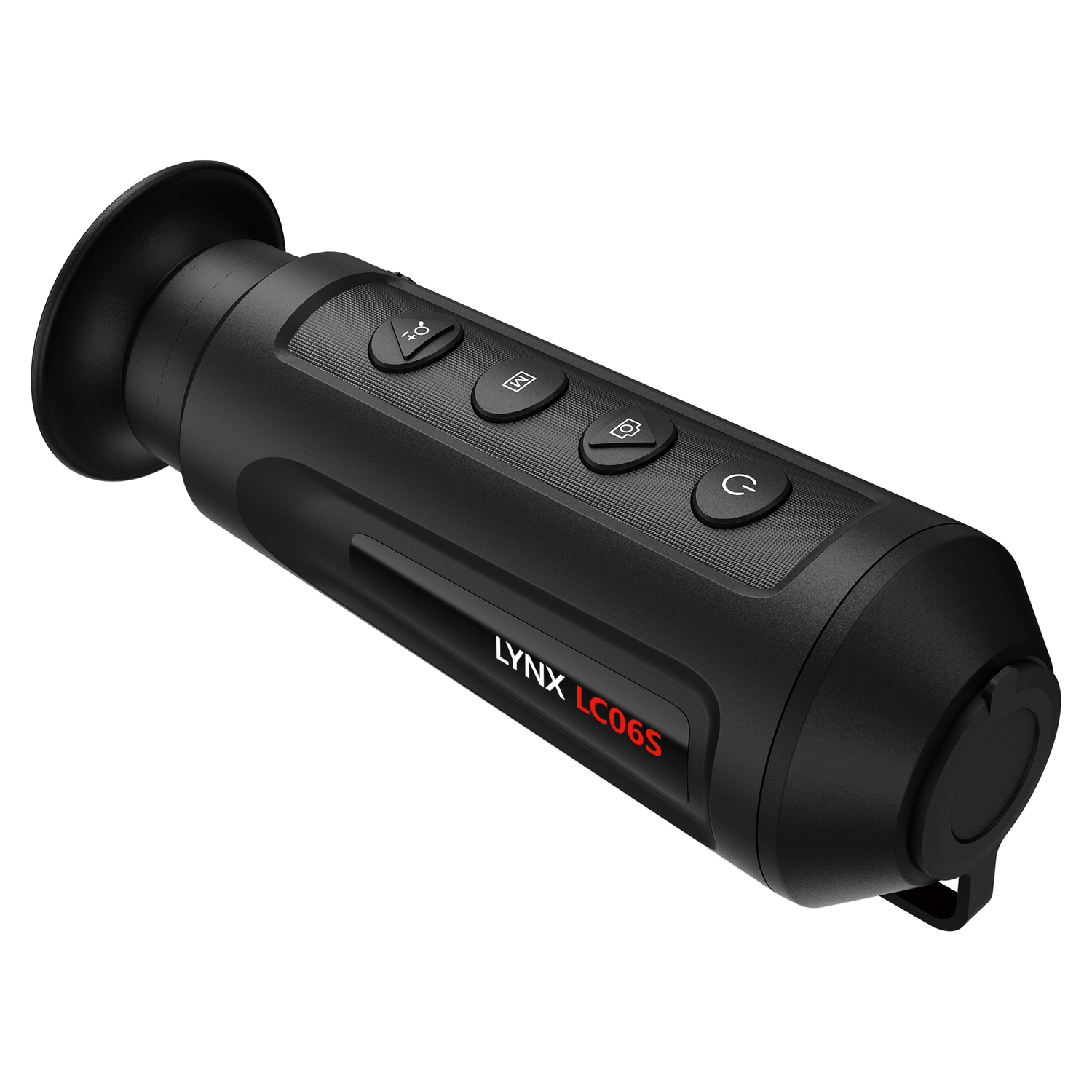

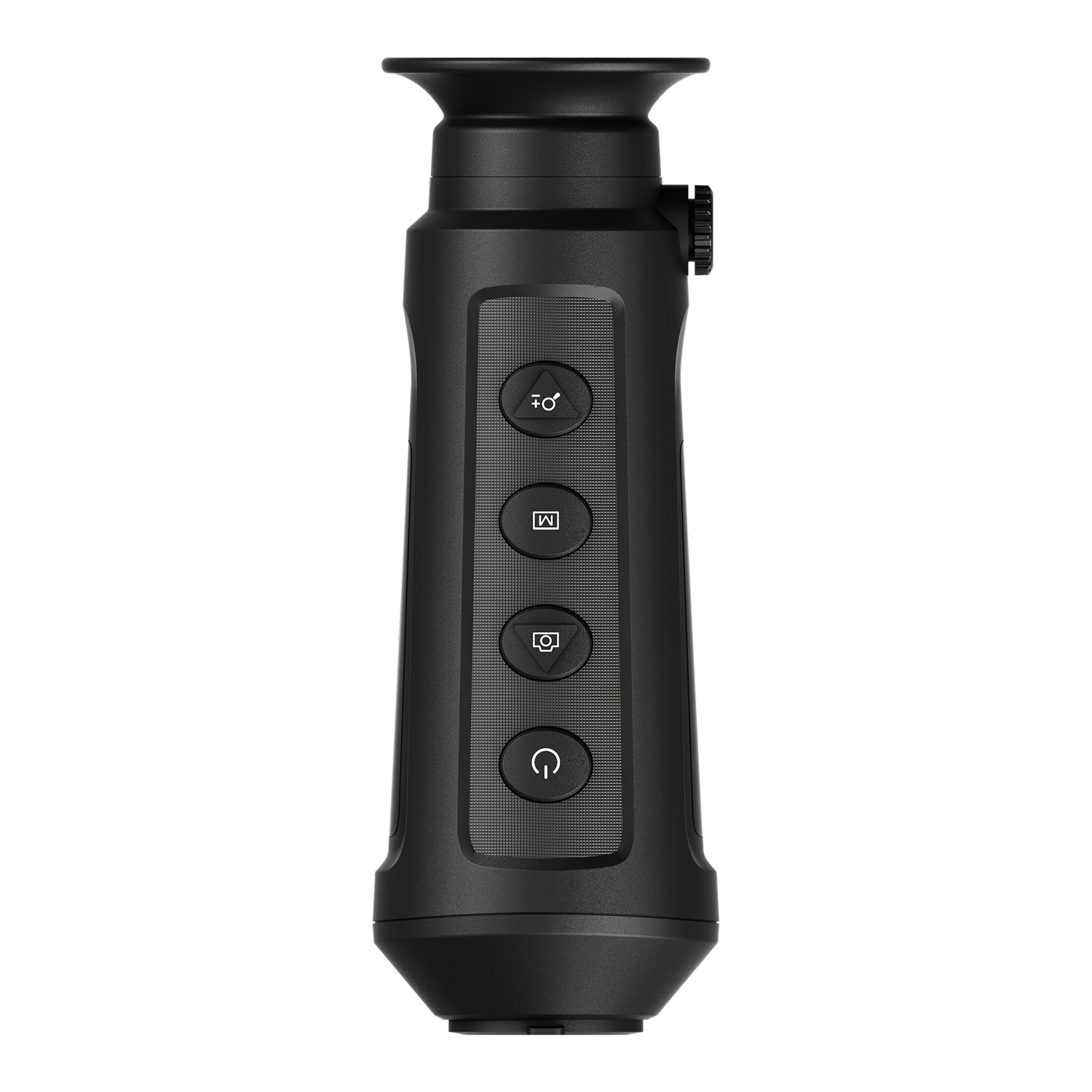

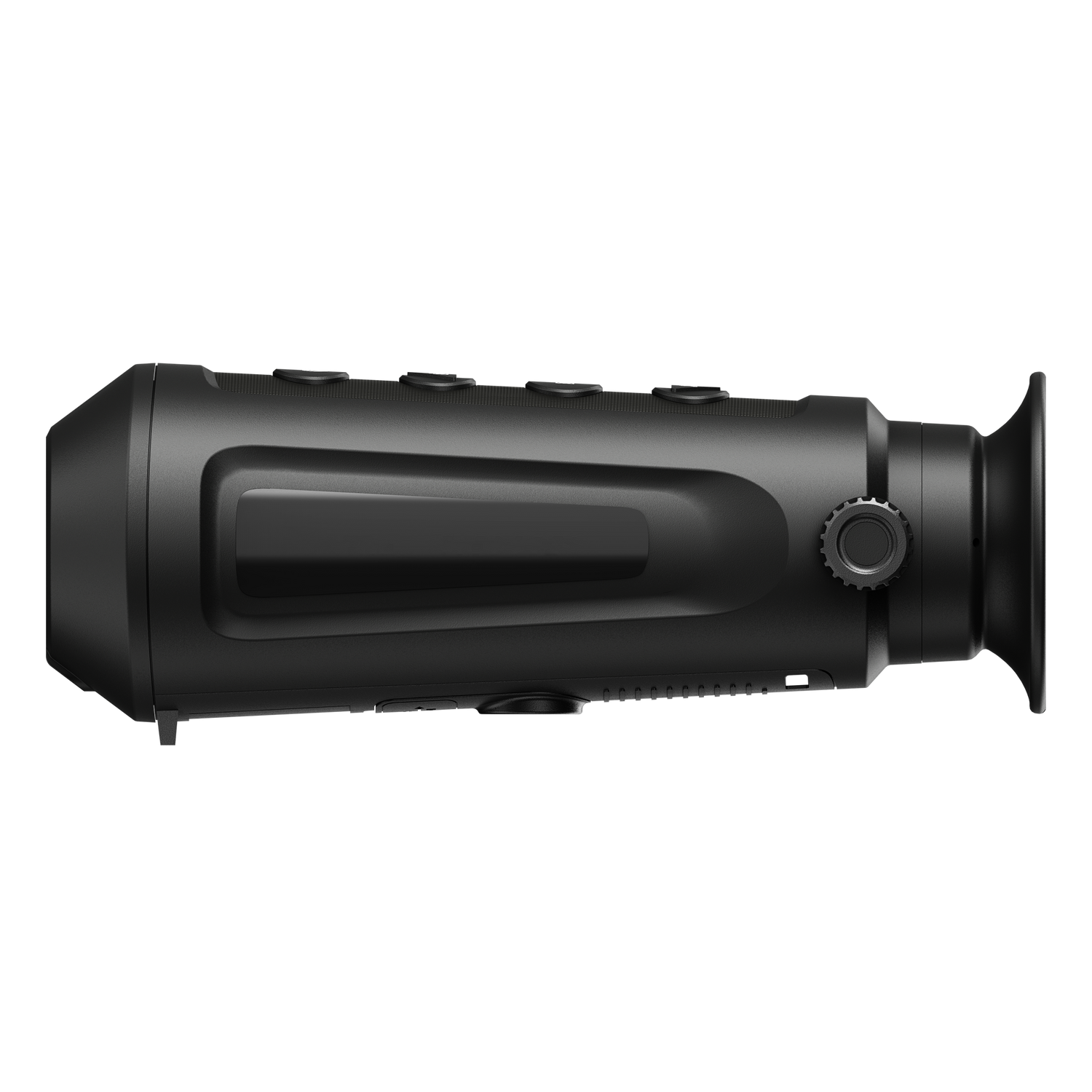

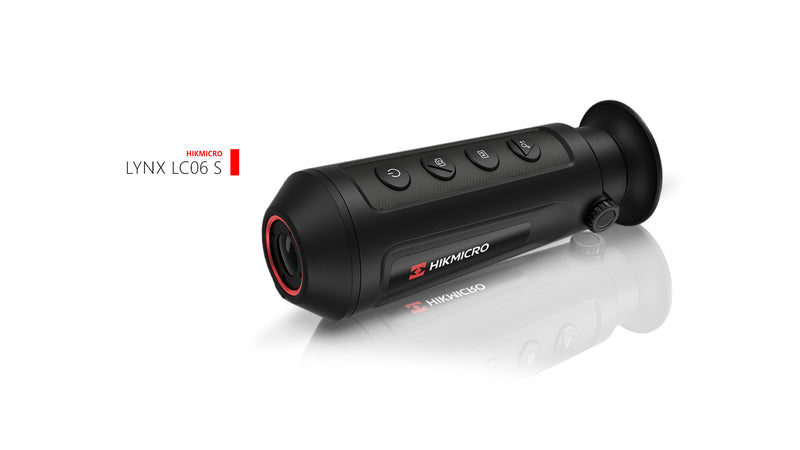

HIKMICRO LYNX S LC06S 6mm 160x120 17mic <35mK Thermal Monocular RRP

HIKMICRO LYNX S LC06S thermal monocular is equipped with a 160 × 120 infrared detector and a 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching and rescuing, etc.

Key Features * High sensitivity Thermal Module with 160 × 120 Resolution * NETD < 35 mK (@25°C, F# = 1.0) * Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR * 800 × 600 Resolution 0.32-inch OLED display * Built-in rechargeable lithium battery * Up to 10 hours continuous operation * Support hotspot * Type-C Interface

Specification Thermal Module * Image Sensor: VOx Uncooled Focal Plane Arrays * Max. Resolution: 160 × 120 * Frame Rate: 50 Hz * Pixel Interval: 17 μm * Response Waveband: 8 μm to 14 μm * NETD: Less than 35 mK (@25°C, F# = 1.1) * Lens (Focal Length): 6.2 mm, F1.1 * Detection Range: 250 m * Focus Mode: Focus Free * Min. Focusing: Distance 1 m * Magnification: 1.0× to 4.0× (4×) * Field of View(H × V), Degrees / m @100 m: 24.7° × 18.7° / 43.8 m × 32.9 m

Image Display * Display: 800 × 600, 0.32-inch, OLED * Palettes: Black Hot, White Hot, Red Hot, Fusion * FFC (Flat Field Correction) Mode: Auto, Manual, External Correction * Exit Pupil: 20 mm * Eye Relief: 6 mm * Diopter (Range): -5D to +4D * Brightness Adjustment: Yes * Tone Adjustment: Cold, Warm * Contrast Adjustment: Yes

System * Record Video: Yes * Capture Snapshot: Yes * Audio Recording: Yes * Standby Mode: Yes * Storage: Built-in memory module (8 GB) * PIP: Yes * Hotspot: Yes * Hot Track: Yes * Distance Measurement: Yes

Power Supply * Battery Type: Rechargeable Lithium Battery * Battery Operating: Time 10 hours continuous running with CVBS and hotspot off (@25°C), 8.5 hours continuous running with CVBS and hotspot on (@25°C) * Type-C Power Supply: DC 5 V/2 A * Supports External Power Supply

General * Protection Level: IP67 * Dimension: 158.4 mm × 60.4 mm × 57 mm (6.24" × 2.38" × 2.24") * Working Temperature: -20°C to 55°C (-4°F to 131°F) * Weight: 250 g (0.55 lbs)
