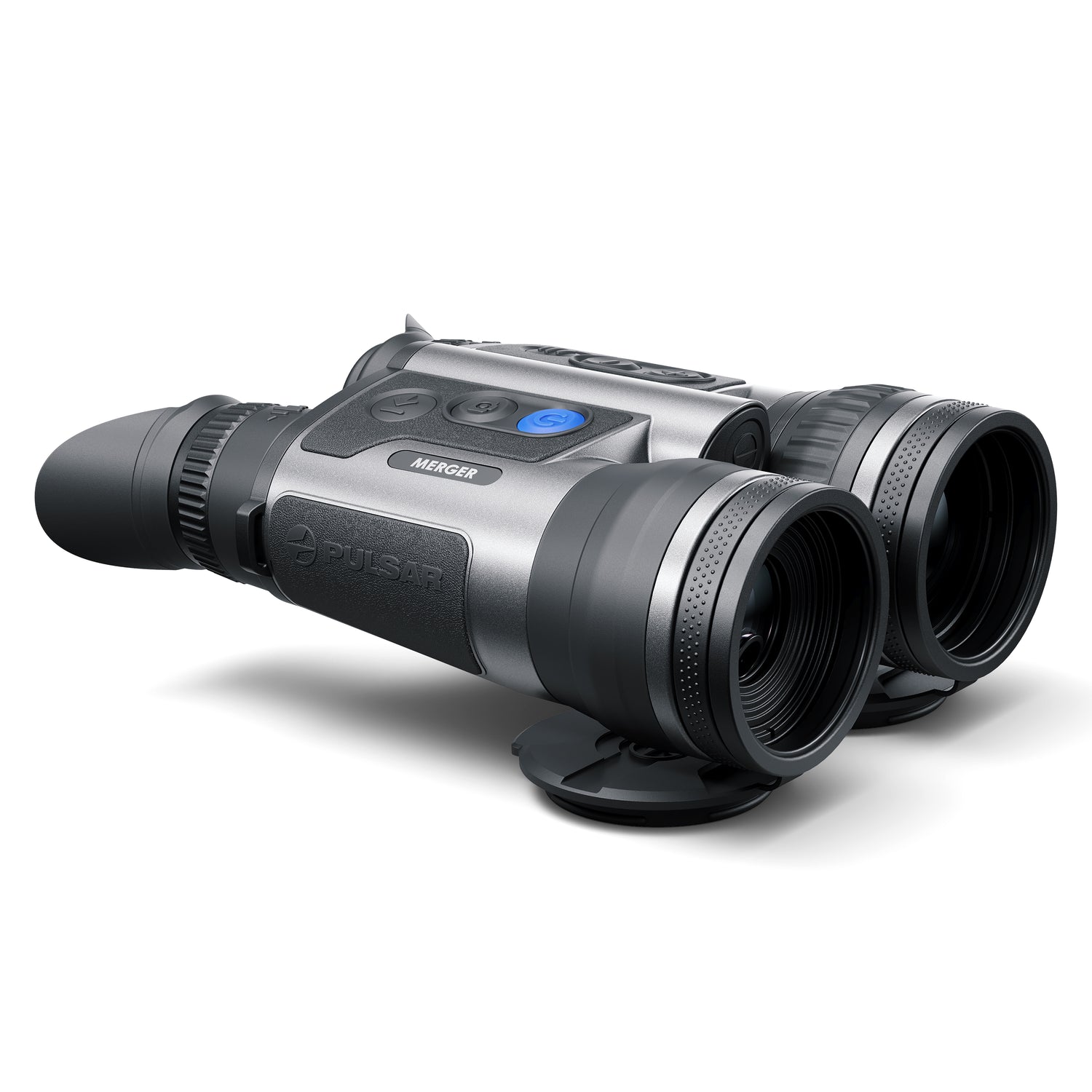

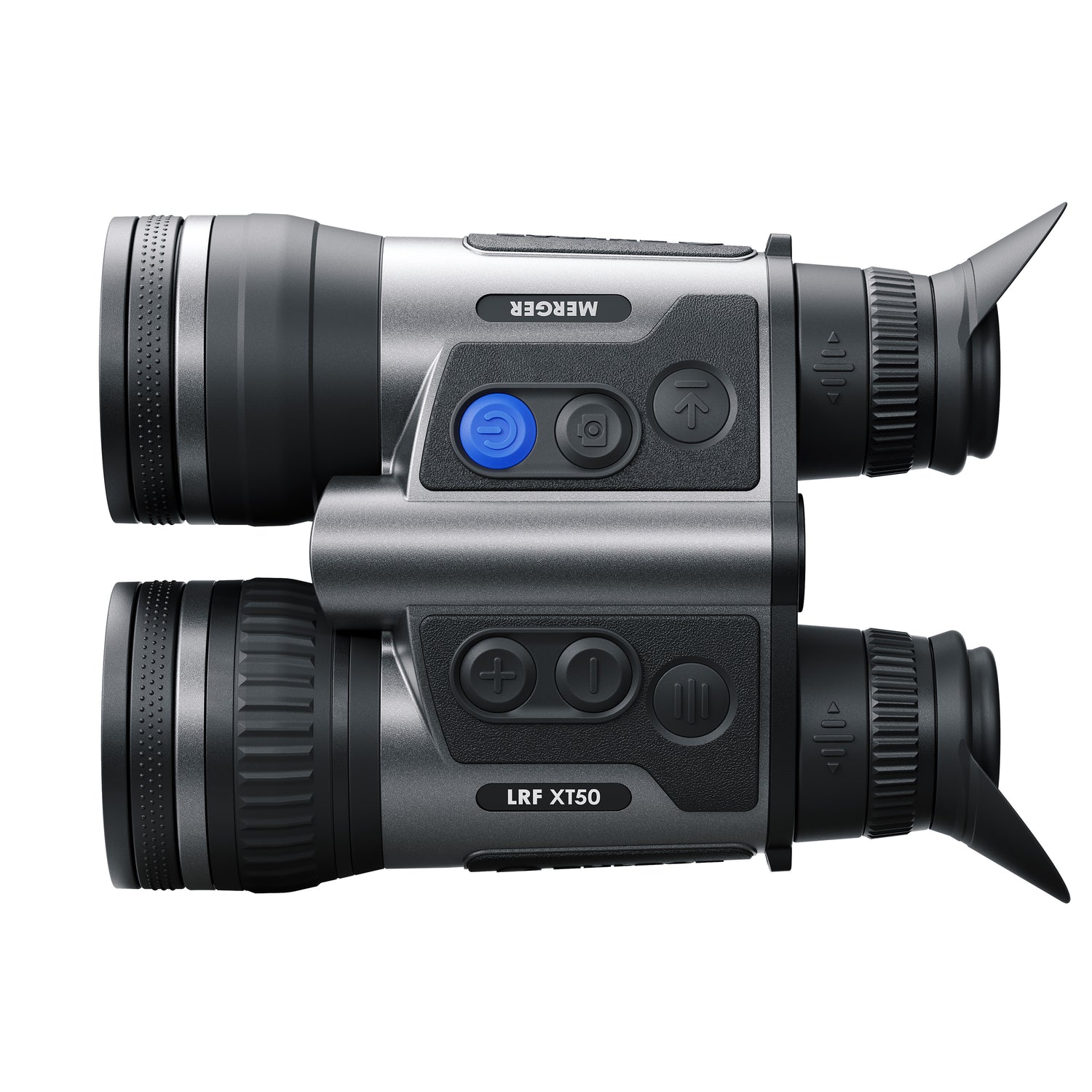

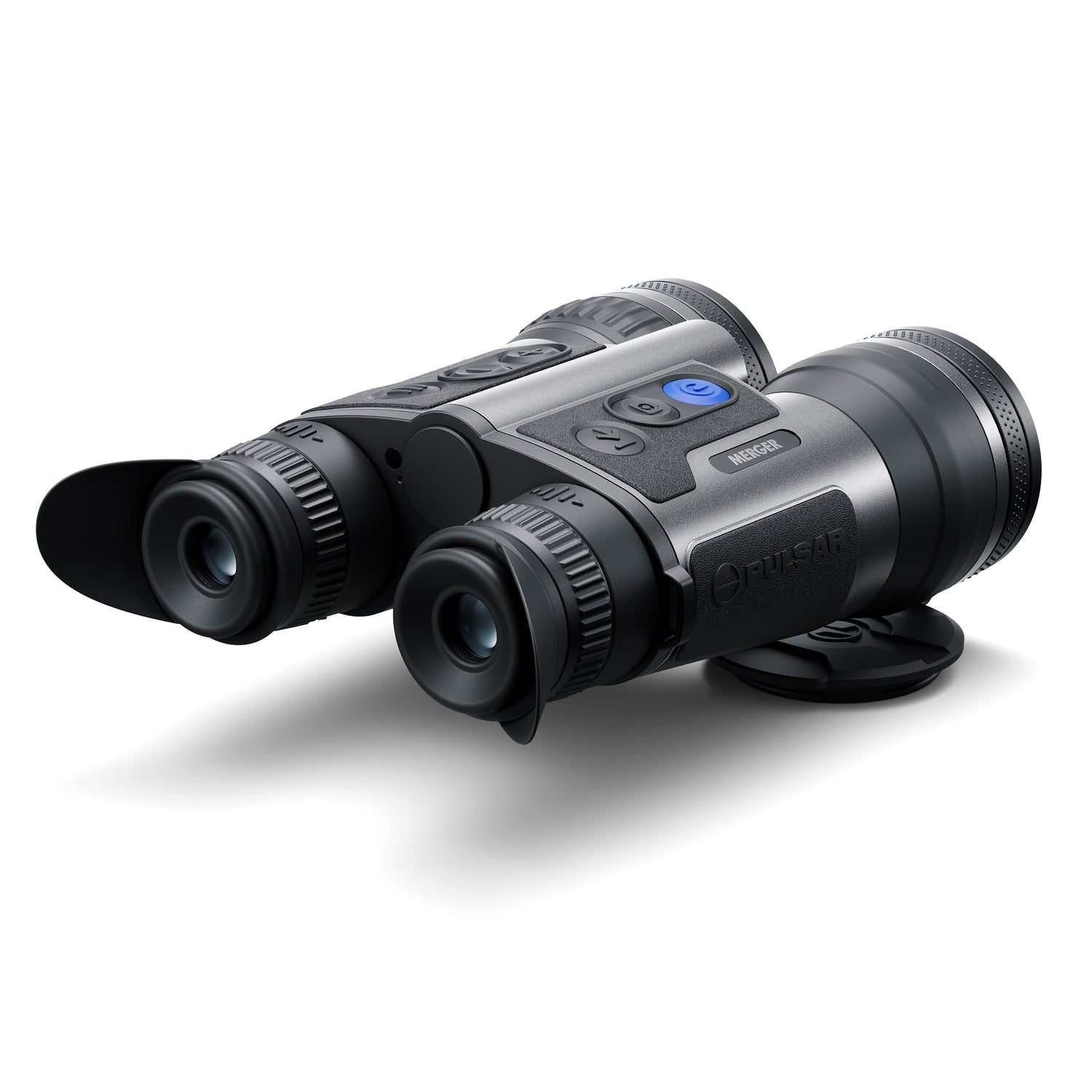

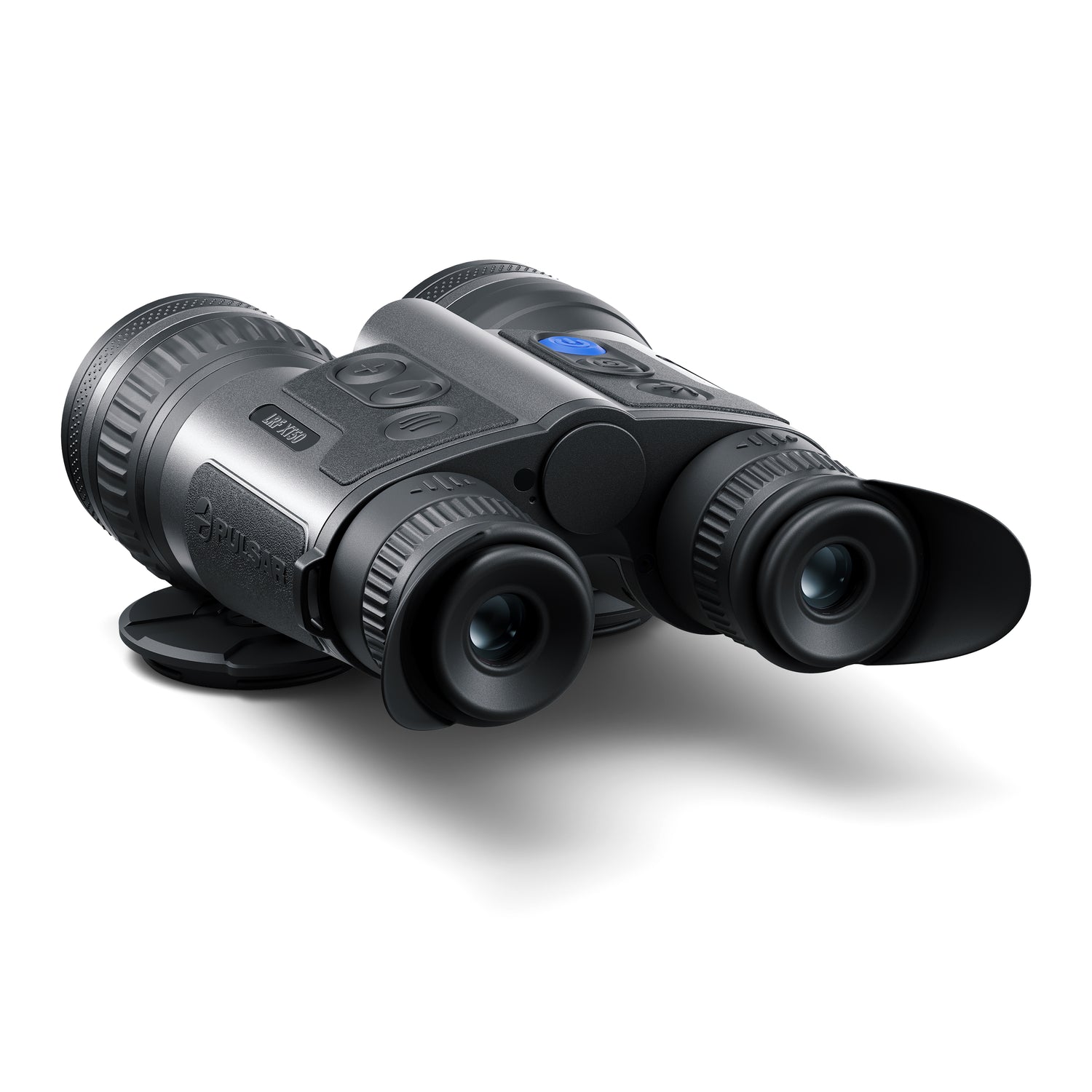

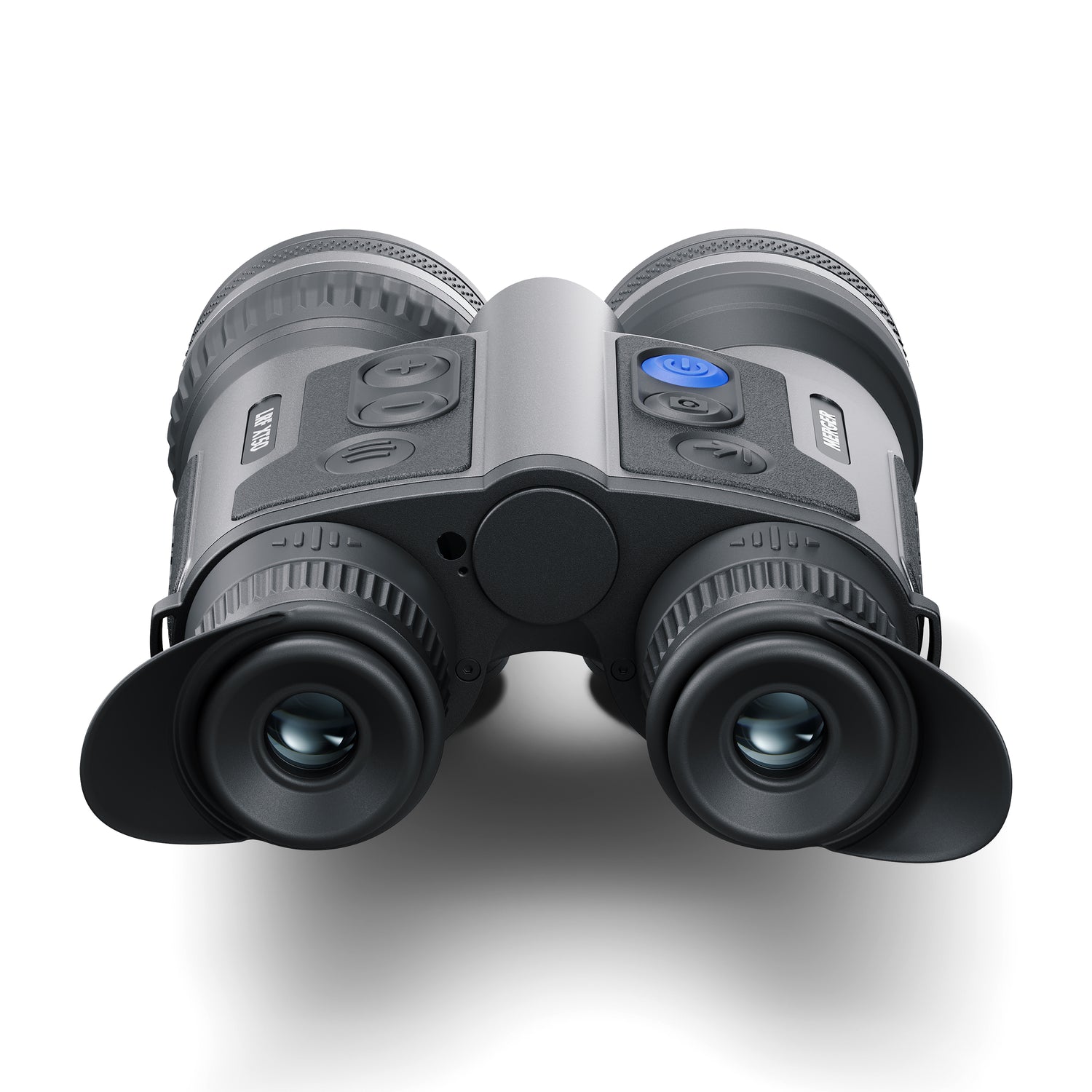

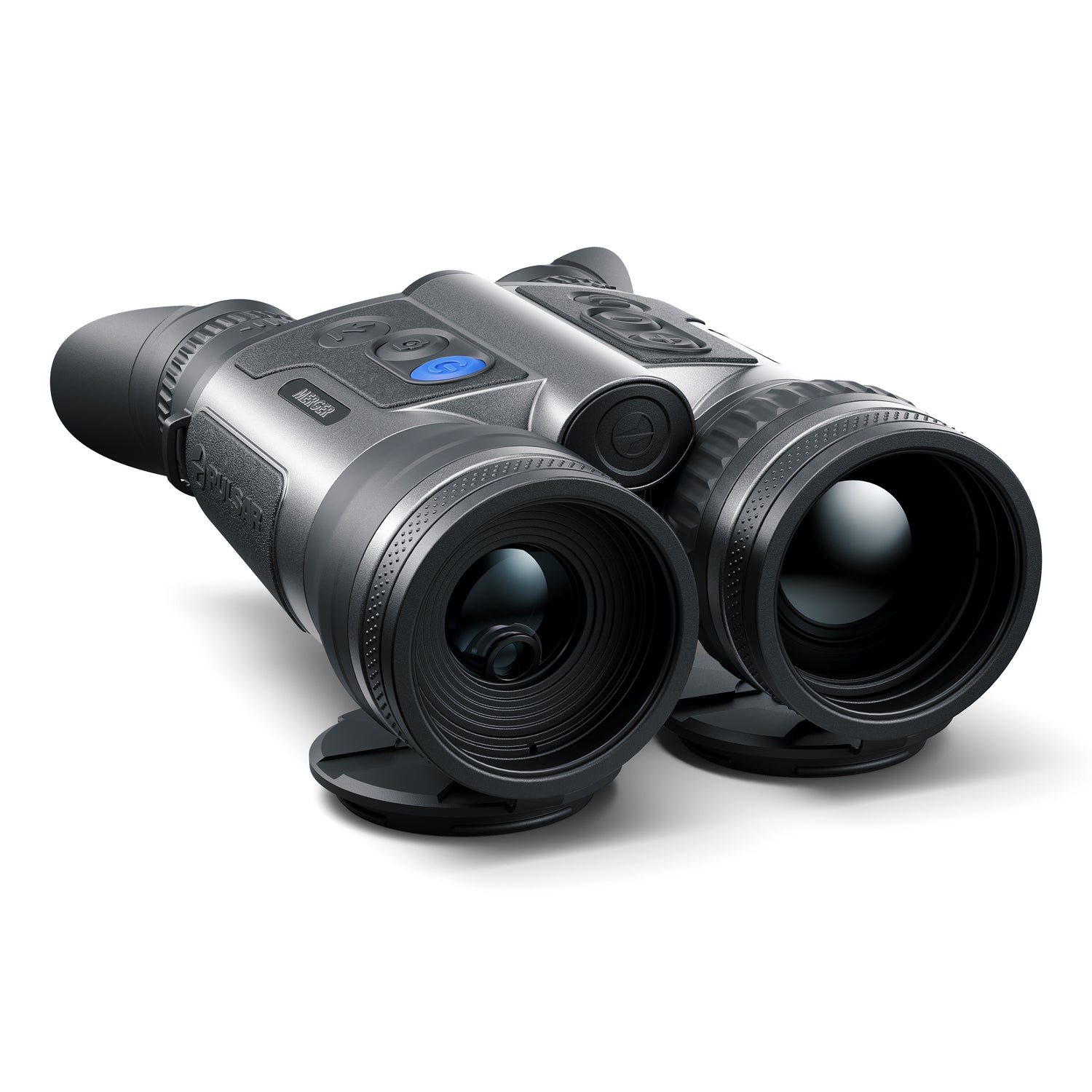

PULSAR MERGER LRF XT50
PULSAR MERGER LRF XT50
PULSAR MERGER LRF XT50
PULSAR MERGER LRF XT50
PULSAR MERGER LRF XT50
PULSAR MERGER LRF XT50
PULSAR MERGER LRF XT50

PULSAR MERGER LRF XT50

$9,799.00 AUD
$9,799.00 AUD
  • A few left in stock!
  • Inventory on the way

The Merger LRF represents our classic thermal imaging binocular design with an integrated laser rangefinder.

These binoculars are remarkably ergonomic and comfortable. They allow for two-eye observation and reduce eye fatigue. They are equipped with top-tier components that exemplify European quality.

  • Premium Merger LRF XT50 offers exceptional performance. Wide 17.5° field of view and excellent image quality thanks to HD 1280×1024/12µm thermal sensor.
MAIN SPECIFICATIONS
Sensor
@ 12 µm 1280x1024

Objective lens
F50 / 1.0
Magnification, x
2 – 16
FOV (HxV), degrees
17.5 х 14
FOV (HxV), m@100m
30.7 х 24
Diopter Adjustment, D
-5/+4
Detection range
2300 m
SENSOR
Type
uncooled
Resolution, pixels
1280x1024
Pixel pitch, µm
12
Sensor NETD, mK
< 40
System NETD, mK
< 20
Frame rate, Hz
50
OPTICS
Objective lens
F50 / 1.0
Magnification, x
2 – 16
FOV (HxV), degrees
17.5 х 14
FOV (HxV), m@100m
30.7 х 24
Diopter Adjustment, D
-5/+4
Interpupillary distance adjustment, mm
62 – 74
Eye relief, mm
15
DISPLAY
Type
AMOLED HD
Resolution, pixels
1280х960
LASER RANGEFINDER
Max. measuring range, m
1500
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resultion, pixel
1280х960
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +50
CONNECTIONS AND COMPATIBILITIES
Mount type
1/4" socket
Supported application
Stream Vision 2
POWER SUPPLY
Output voltage, V
3.7
Battery type
Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4000 mAh / DC 3.7 V (built-in)
Capacity, mAh
3200 (external) + 4000 (internal)
Operating time on battery pack, hat t=22°С
6
External power supply, V
5V (USB type-C)
WEIGHT & SIZE
Body material
Magnesium alloy
Dimensions, mm
197x140x72
Weight, kg
0.95 (batteries included)
