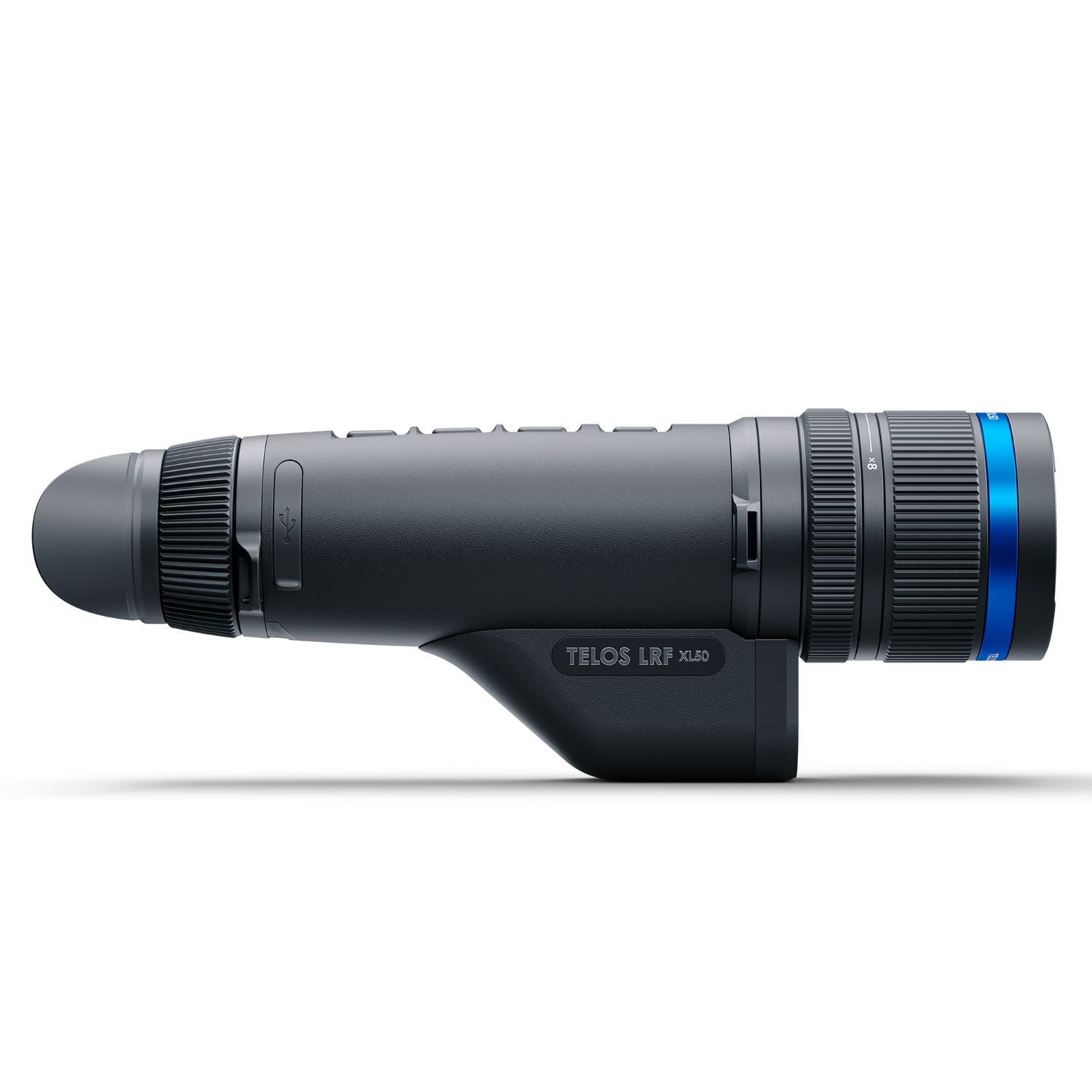

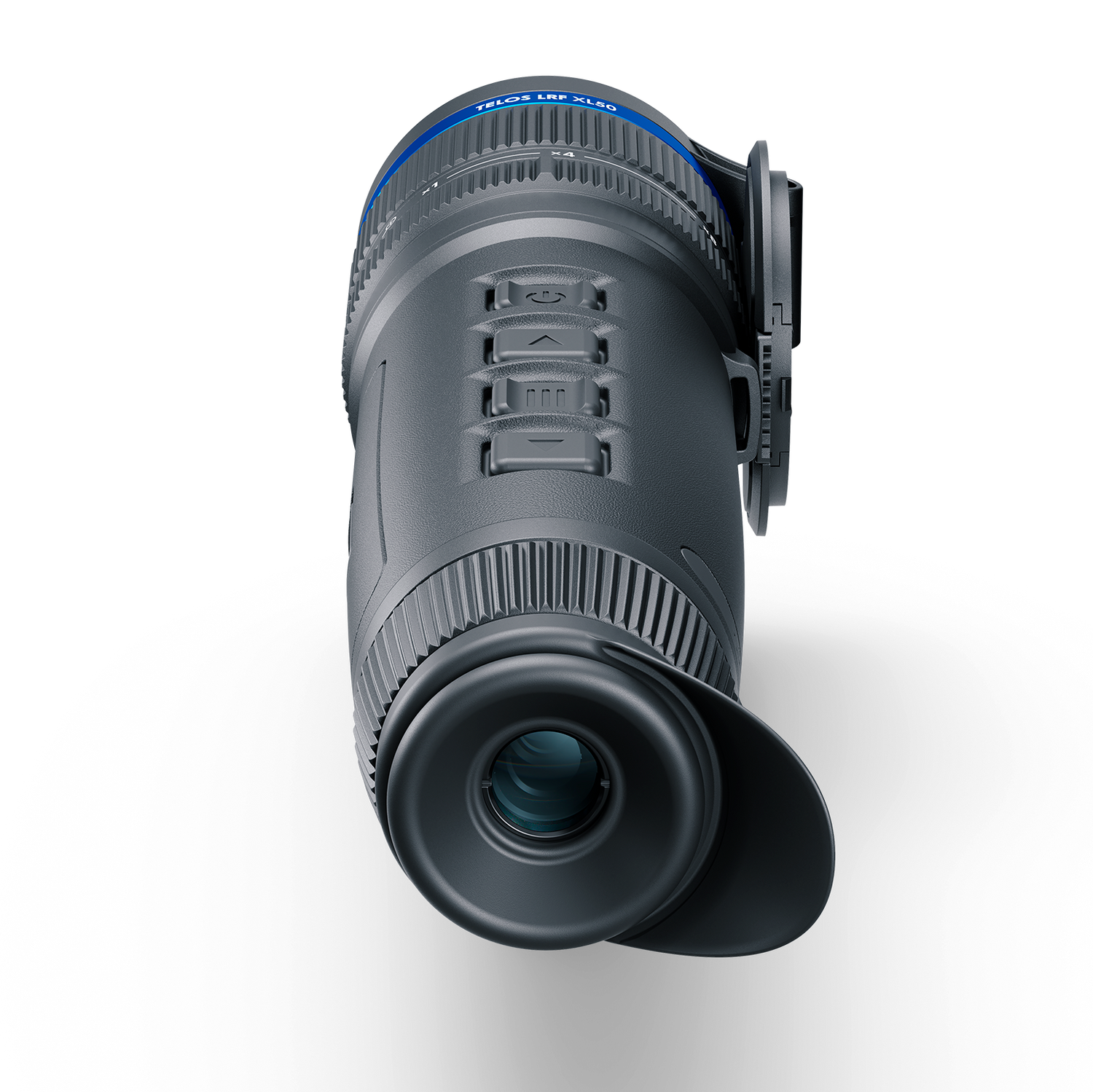

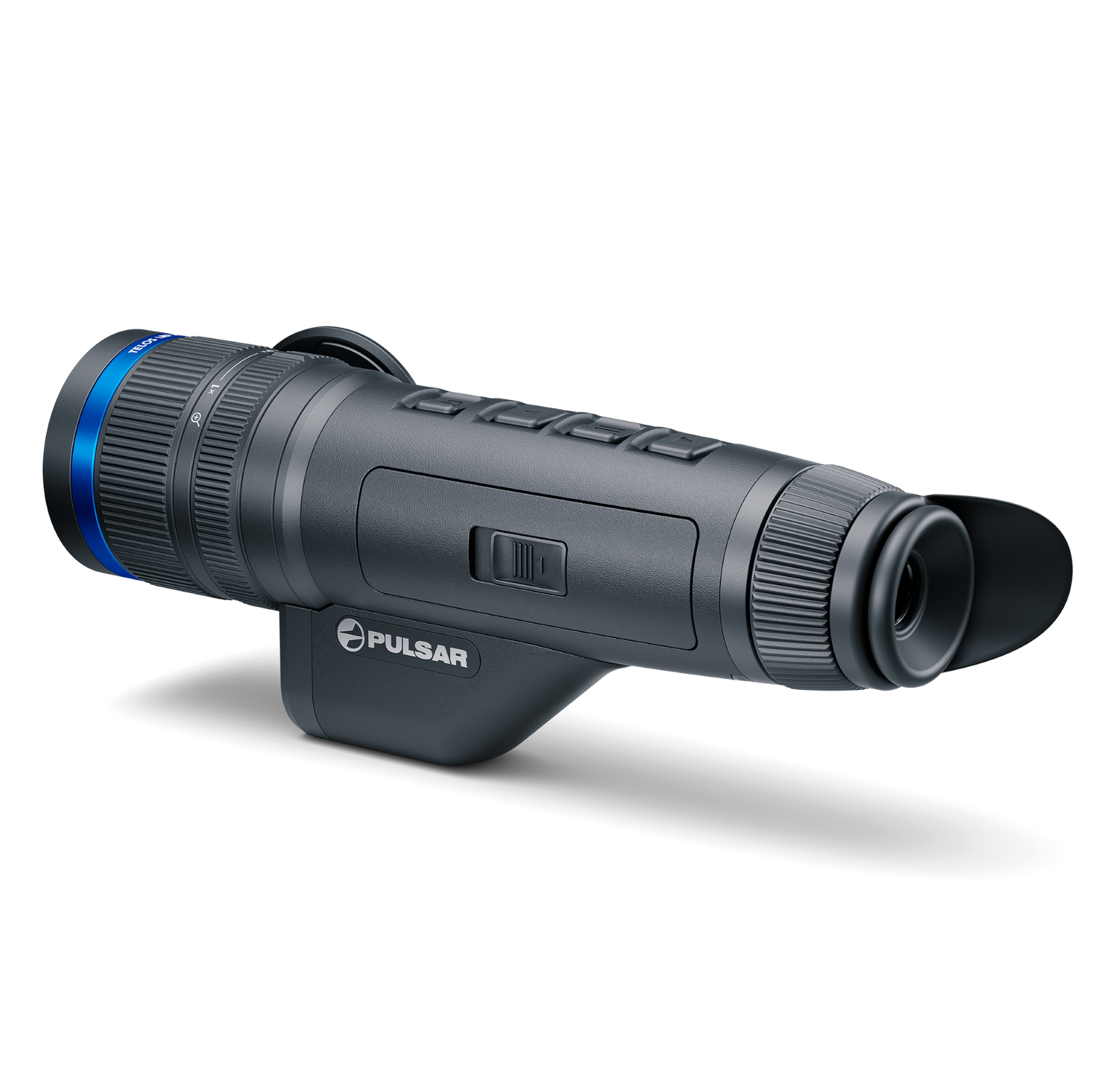

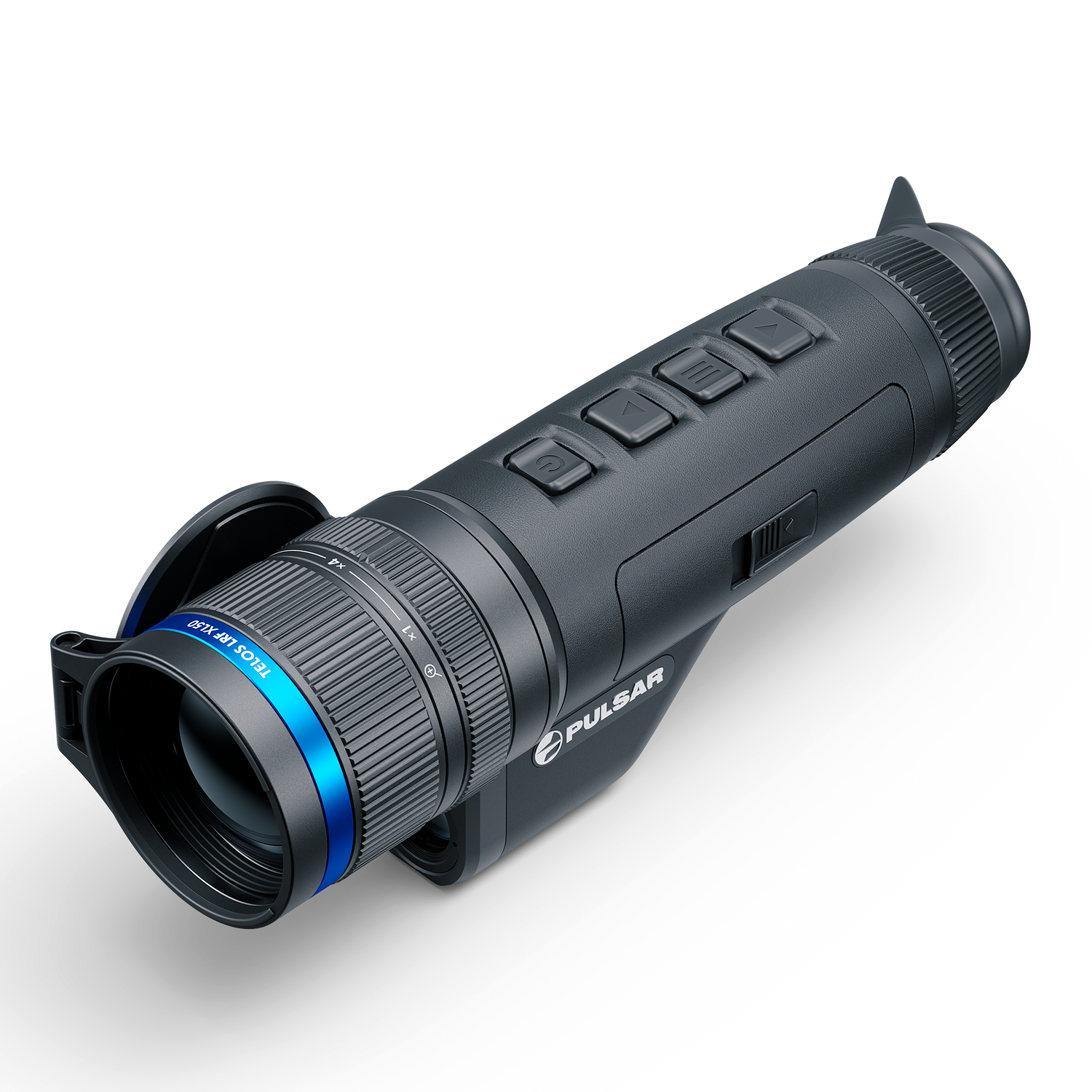

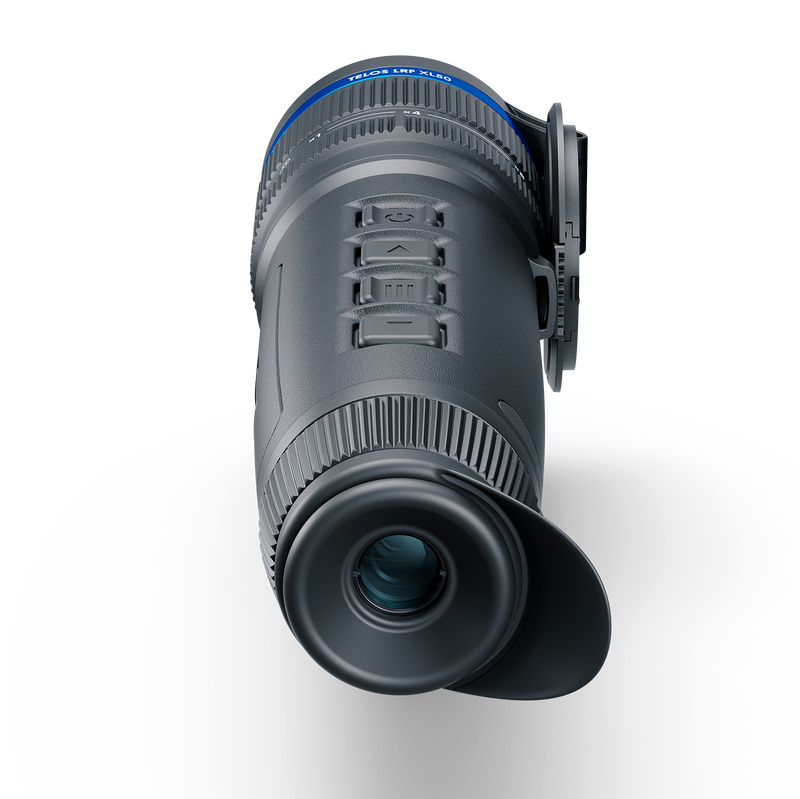

PULSAR TELOS LRF XL50 THERMAL MONOCULAR

$6,999.00 AUD

A few left in stock!
Inventory on the way

The most powerful of the range, the Pulsar Telos LRF XL50 is the first thermal imaging monocular with an HD resolution sensor and a built-in laser rangefinder.

MAIN SPECIFICATIONS

Sensor

@ 12 µm 1024x768

Objective lens

F50 / 1.0

Magnification, x

2.5 – 20 (x8 digital zoom)

FOV (HxV), degrees

14 x 10.5

FOV (HxV), m@100m

24.6 х 18.5

Detection range

2300 m

SENSOR

uncooled

Resolution, pixels

1024x768

Pixel pitch, µm

Sensor NETD, mK

System NETD, mK

Frame rate, Hz

OPTICS

Objective lens

F50 / 1.0

Magnification, x

2.5 – 20 (x8 digital zoom)

FOV (HxV), degrees

14 x 10.5

FOV (HxV), m@100m

24.6 х 18.5

Eye relief, mm

DISPLAY

AMOLED HD

Resolution, pixels

1024x768

RANGE PERFORMANCE

Detection range, m

2300 m

LASER RANGEFINDER

Max. measuring range, m

Measurement accuracy, m

Safety class for laser equipmentaccording to IEC 60825-1:2014

Wavelength, nm

VIDEO RECORDER

Video / photo resultion, pixel

1024x768

Video / photo format

.mp4 / .jpg

Build-in memory, GB

WI-FI

Wireless protocol

Wi-Fi

Wireless standard

IEEE 802.11 b/g/n/ac (WPA)

Frequency, Ghz

2.4 / 5

ENVIRONMENTAL CHARACTERISTICS

Degree of protectionIP code (IEC60529)

IPX7 (waterproof)

Operating temperature range, °С

-25 – +40

CONNECTIONS AND COMPATIBILITIES

Supported application

Stream Vision 2

POWER SUPPLY

Output voltage, V

3.0 – 4.2

Battery type

LPS 7i Li-Ion Battery Pack

Capacity, mAh

Operating time on battery pack, hat t=22°С

External power supply, V

5V; 9V (USB Type-C Power Delivery)

WEIGHT & SIZE

Body material

rubber armored reinforced plastic

Dimensions, mm

243x72x90

Weight, kg
