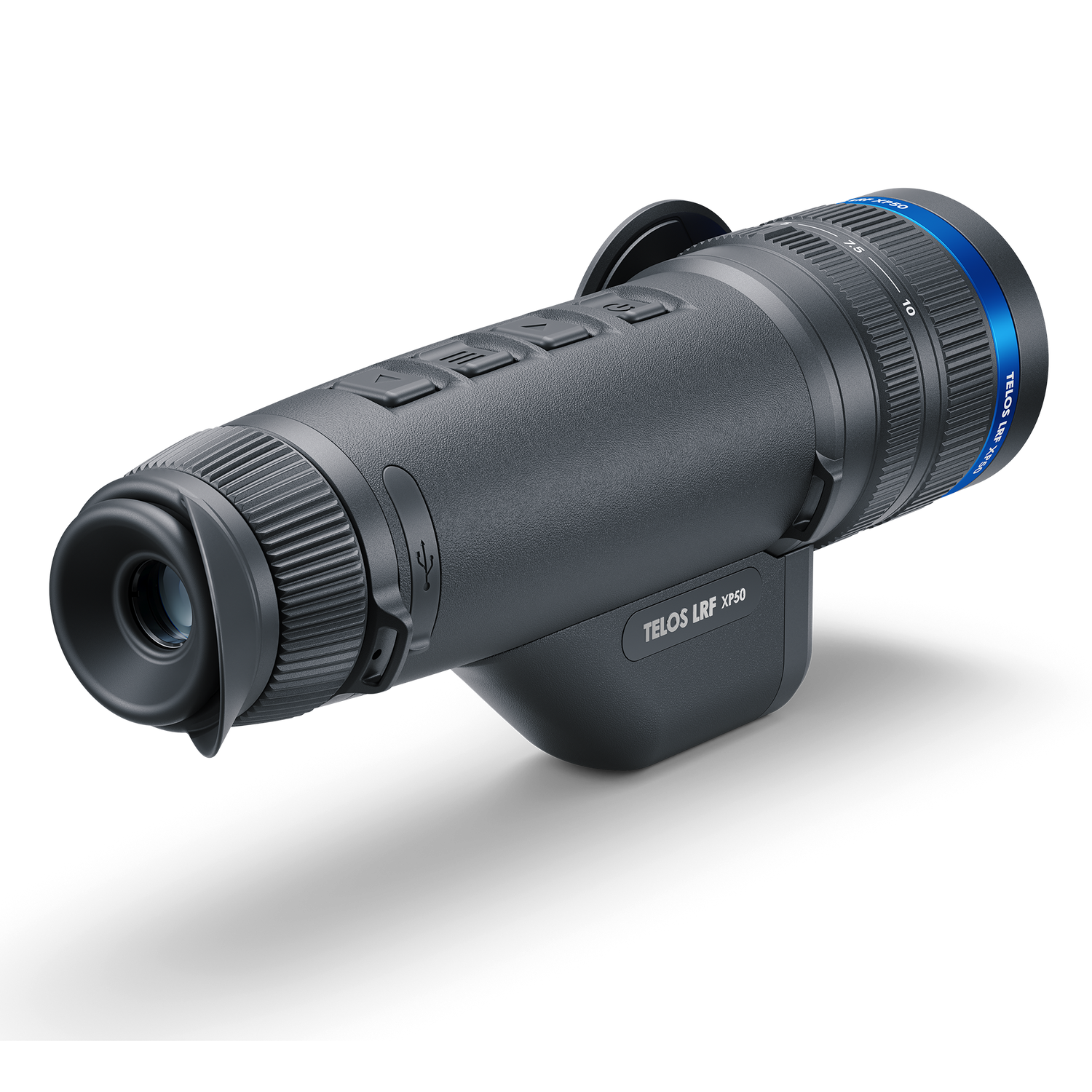

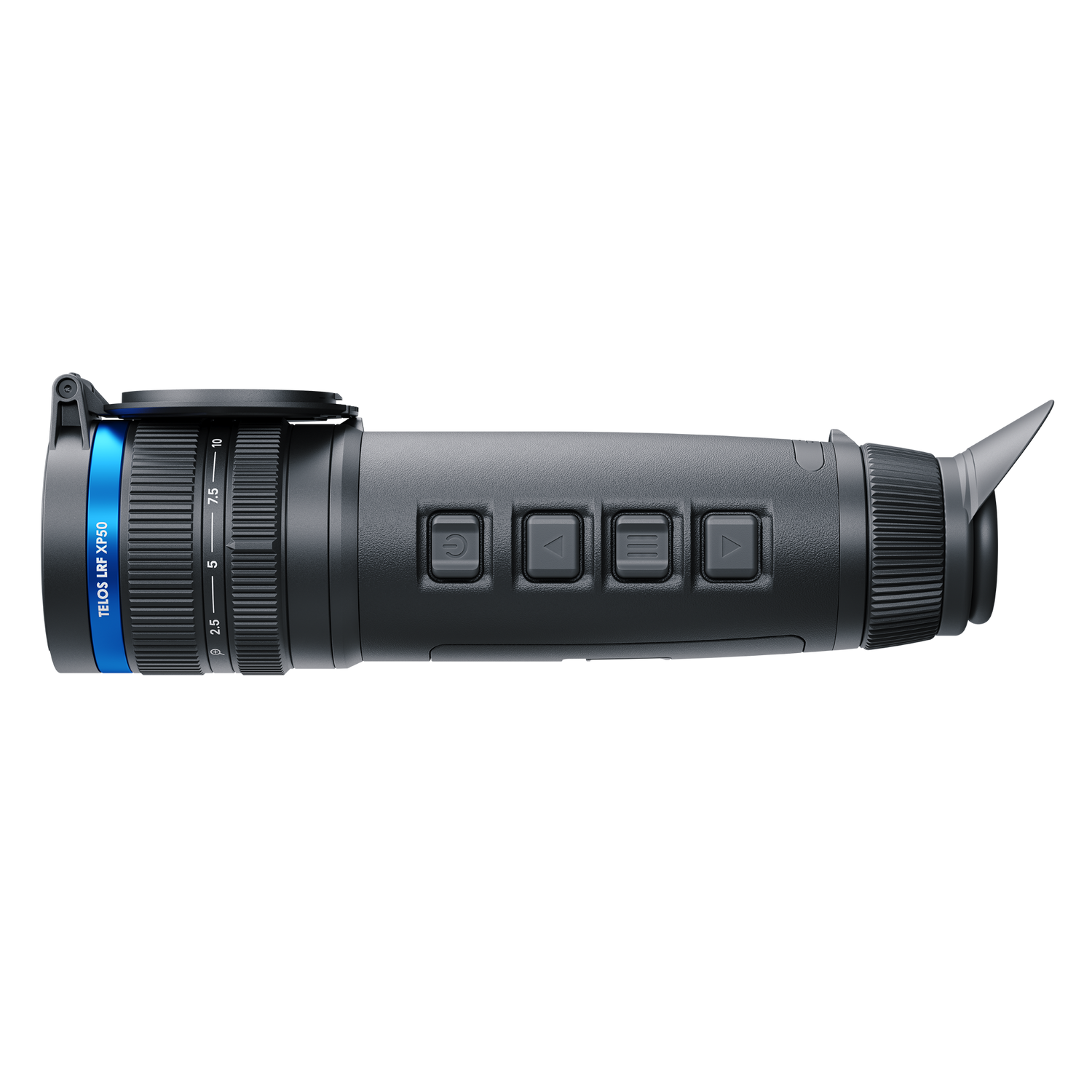

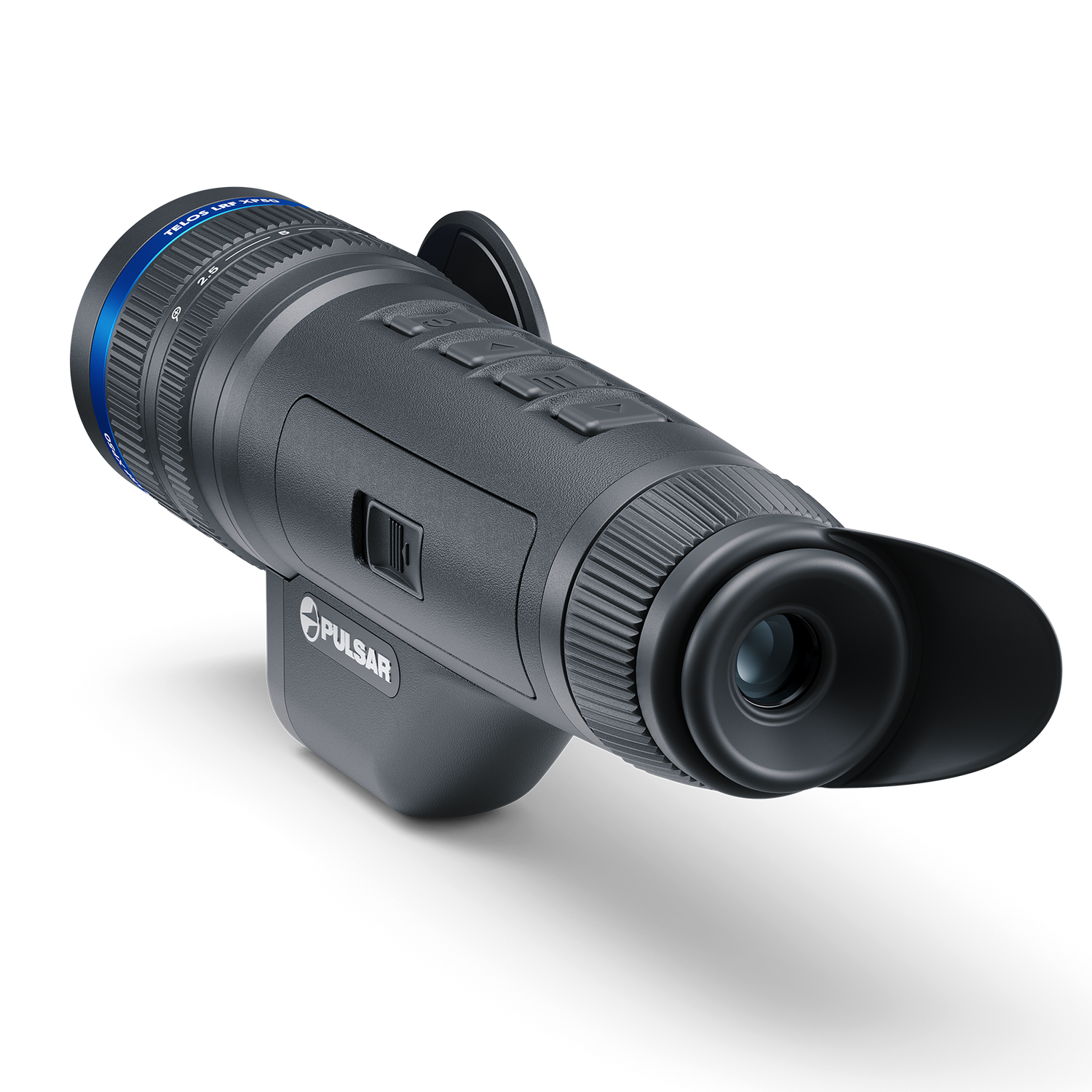

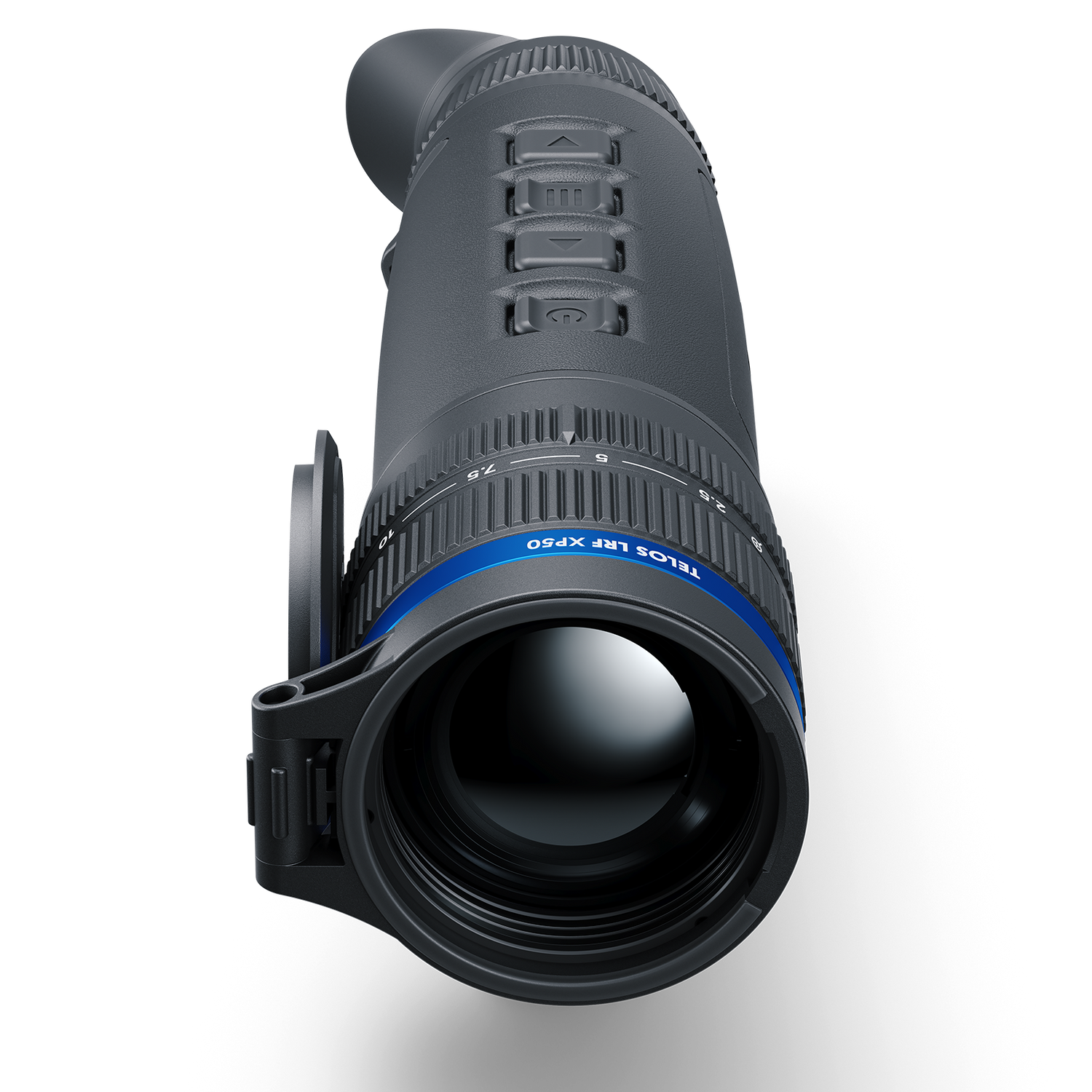

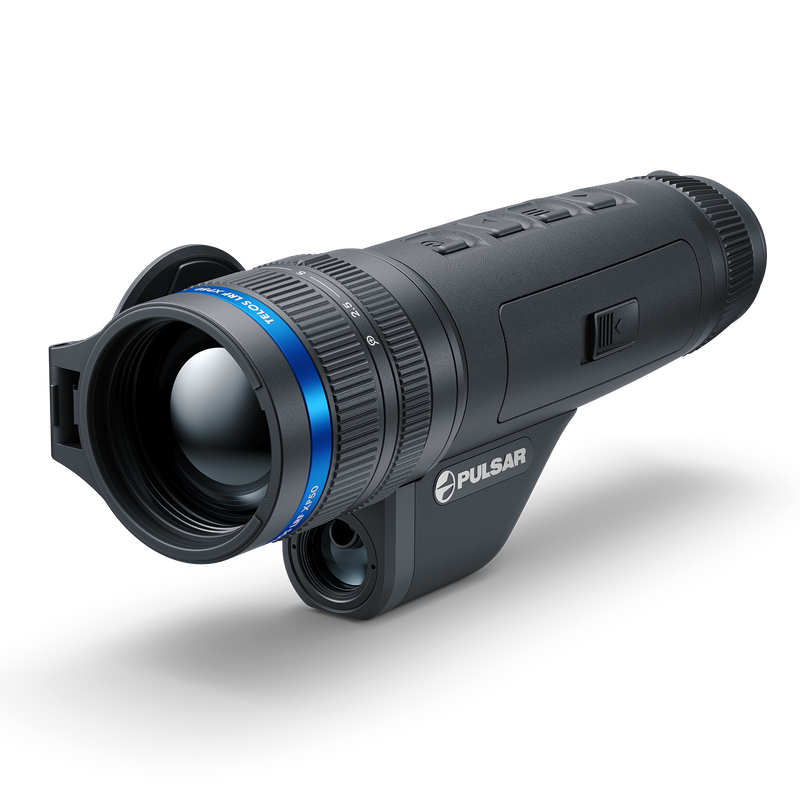

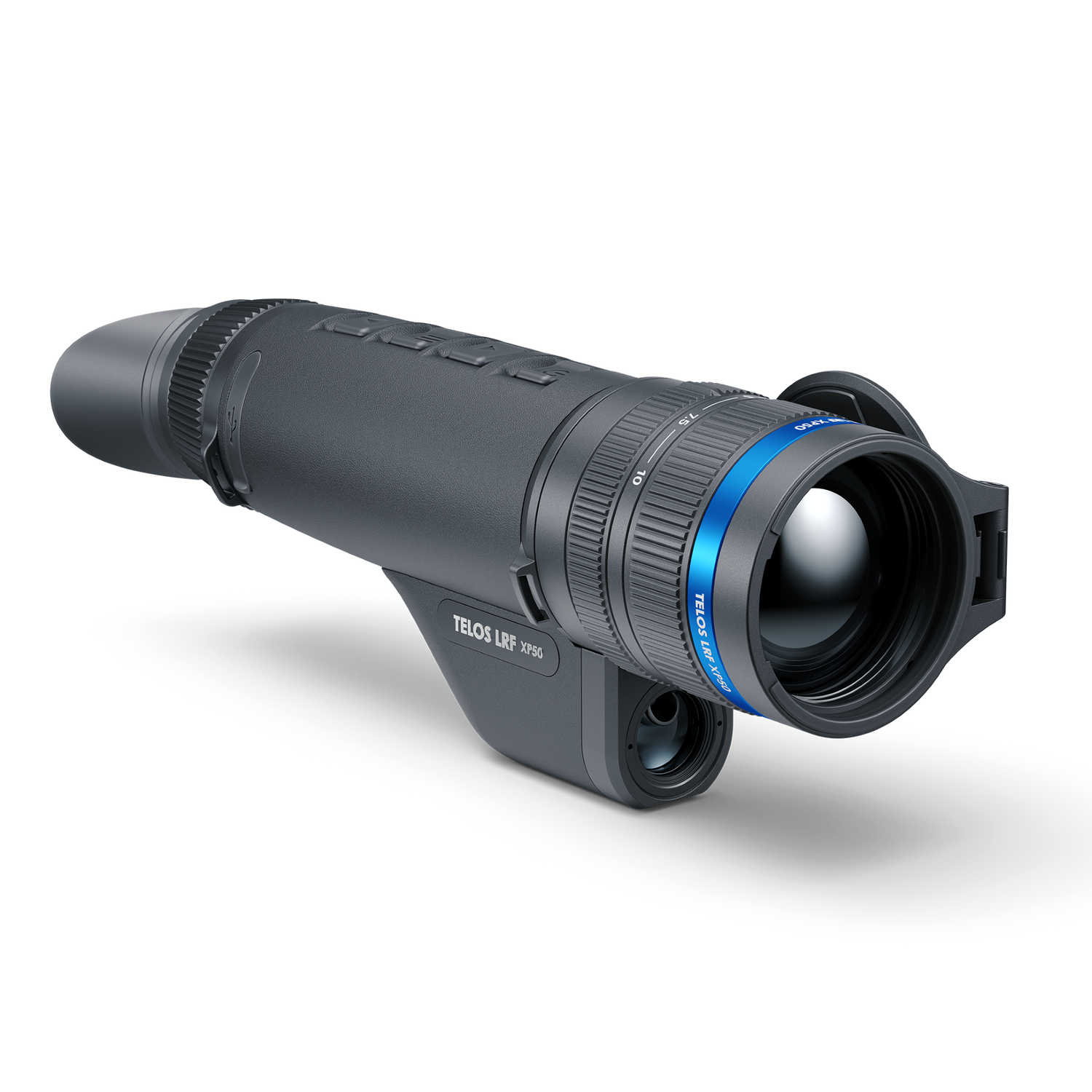

PULSAR TELOS LRF XP50 THERMAL MONOCULAR
Regular price
$5,399.00 AUD
Regular price
- A few left in stock!
Enjoy incredible thermal sensitivity and precise distance measurements with the Pulsar Telos LRF XP50.
MAIN SPECIFICATIONS
Sensor
@ 17 µm 640x480
Objective lens
F50 / 1.0
Magnification, x
2.5 – 10 (x4 digital zoom)
FOV (HxV), degrees
12.4 x 9.3
FOV (HxV), m@100m
21.8 x 16.3
Detection range
1800 m
SENSOR
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
17
Sensor NETD, mK
<18
System NETD, mK
< 15
Frame rate, Hz
50
OPTICS
Objective lens
F50 / 1.0
Magnification, x
2.5 – 10 (x4 digital zoom)
FOV (HxV), degrees
12.4 x 9.3
FOV (HxV), m@100m
21.8 x 16.3
Eye relief, mm
14
DISPLAY
Type
AMOLED HD
Resolution, pixels
1024x768
RANGE PERFORMANCE
Detection range, m
1800 m
LASER RANGEFINDER
Max. measuring range, m
1000
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resultion, pixel
1024x768
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +40
CONNECTIONS AND COMPATIBILITIES
Mount type
1/4"
Supported application
Stream Vision 2
POWER SUPPLY
Output voltage, V
3.0 – 4.2
Battery type
LPS 7i Li-Ion Battery Pack
Capacity, mAh
6400
Operating time on battery pack, hat t=22°С
8.5
External power supply, V
5V; 9V (USB Type-C Power Delivery)
WEIGHT & SIZE
Body material
rubber armored reinforced plastic
Dimensions, mm
238x72x90
Weight, kg
0.58 (w/o battery) / 0.72 (with the LPS7i battery
