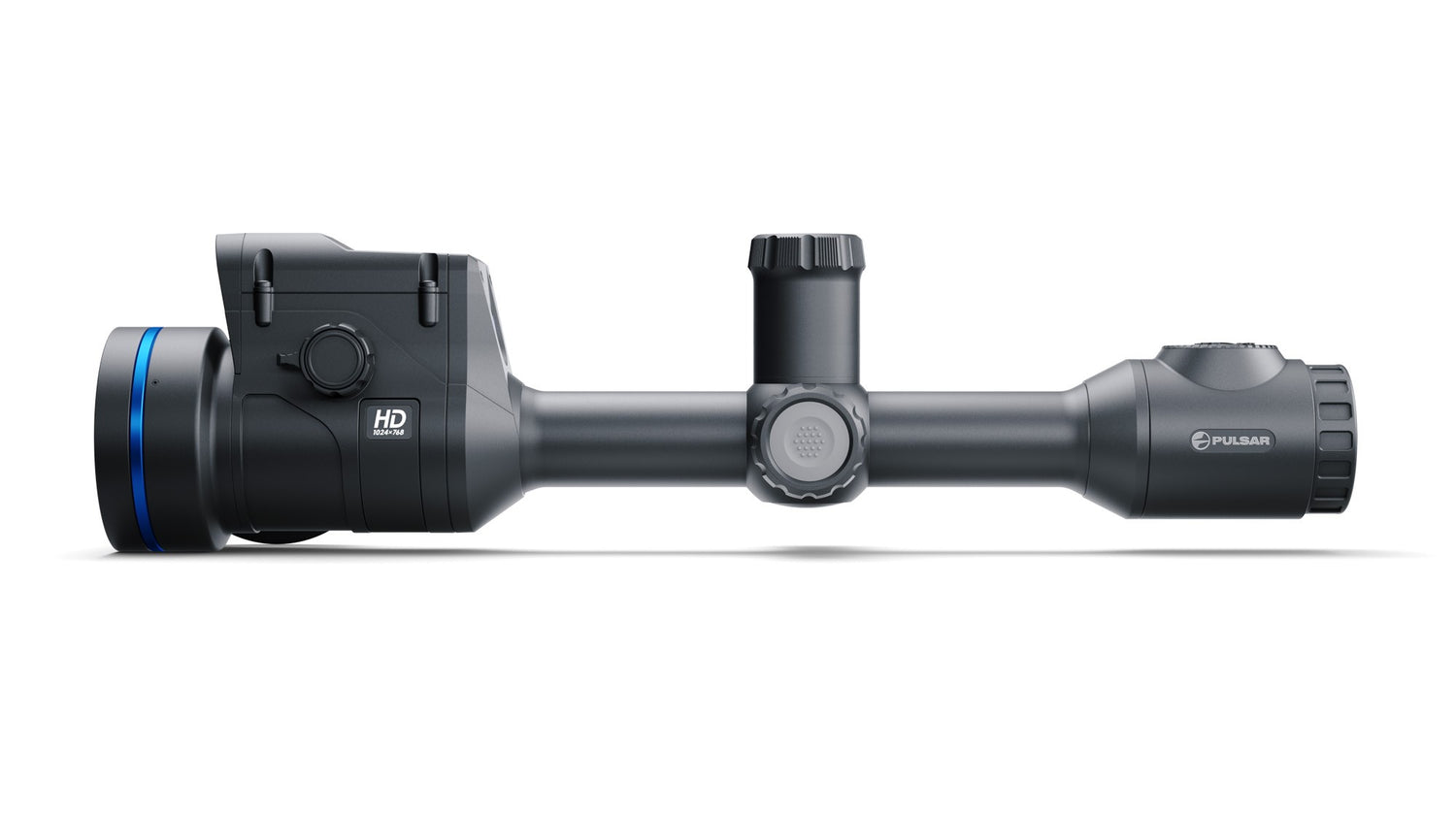

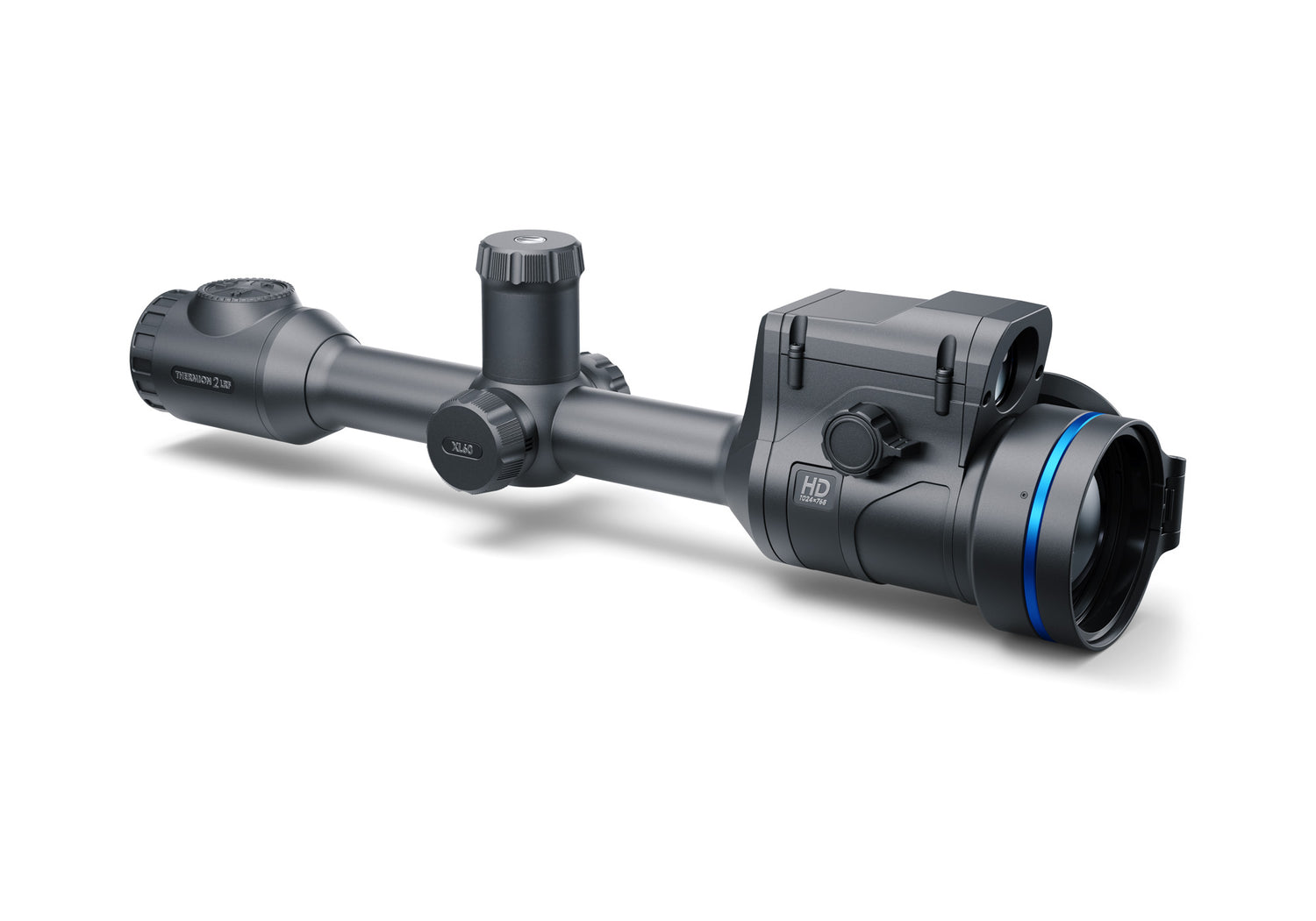

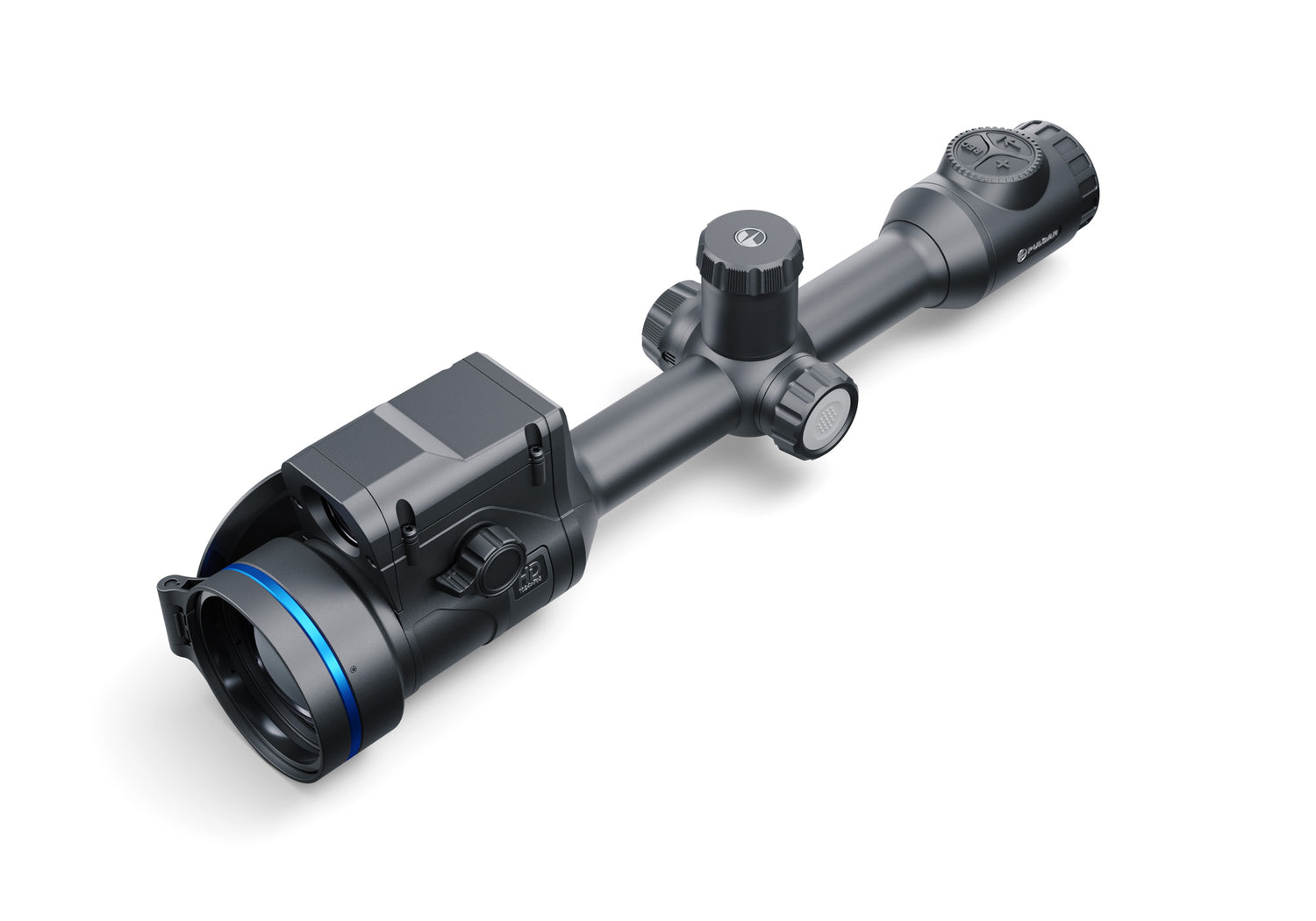

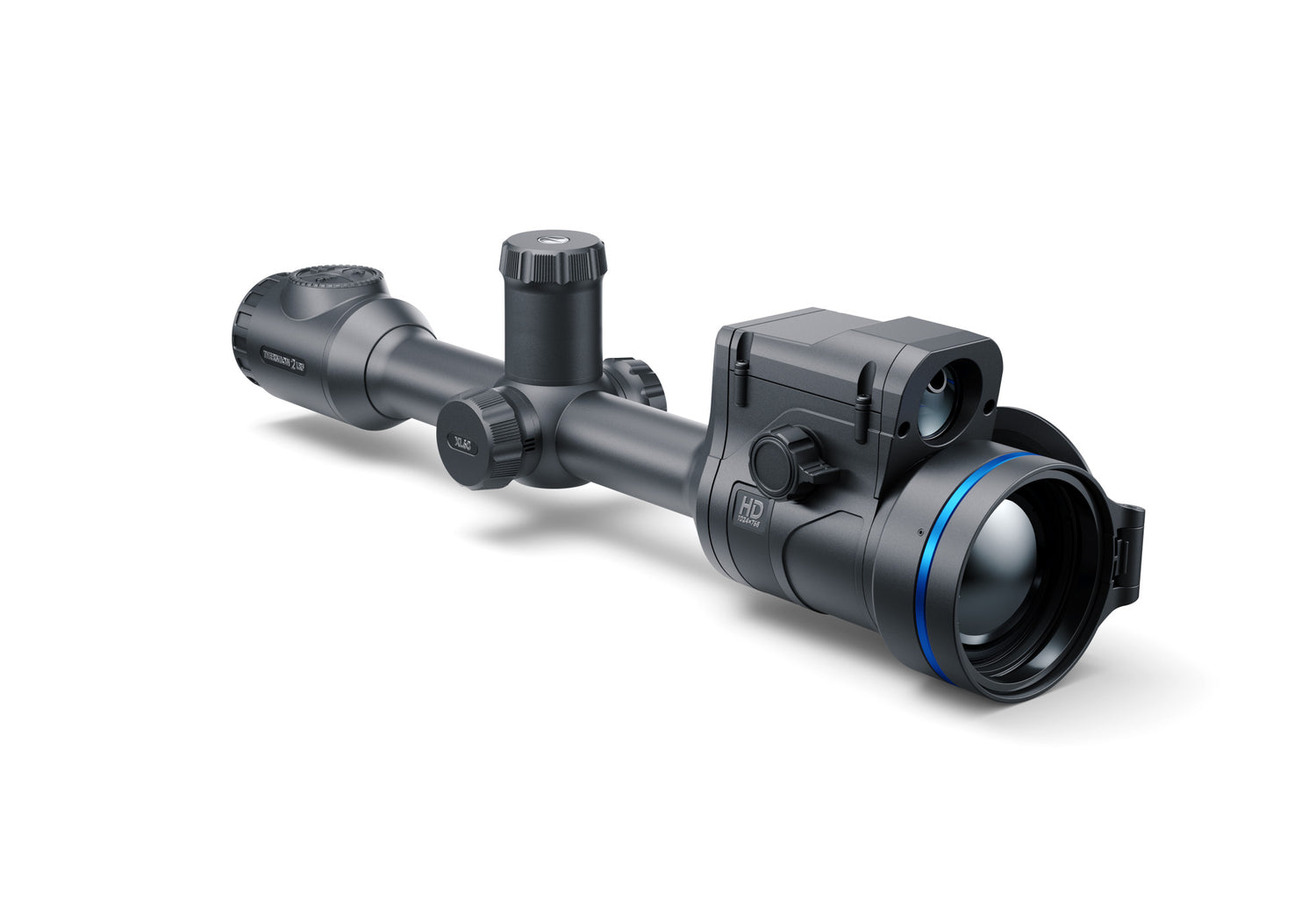

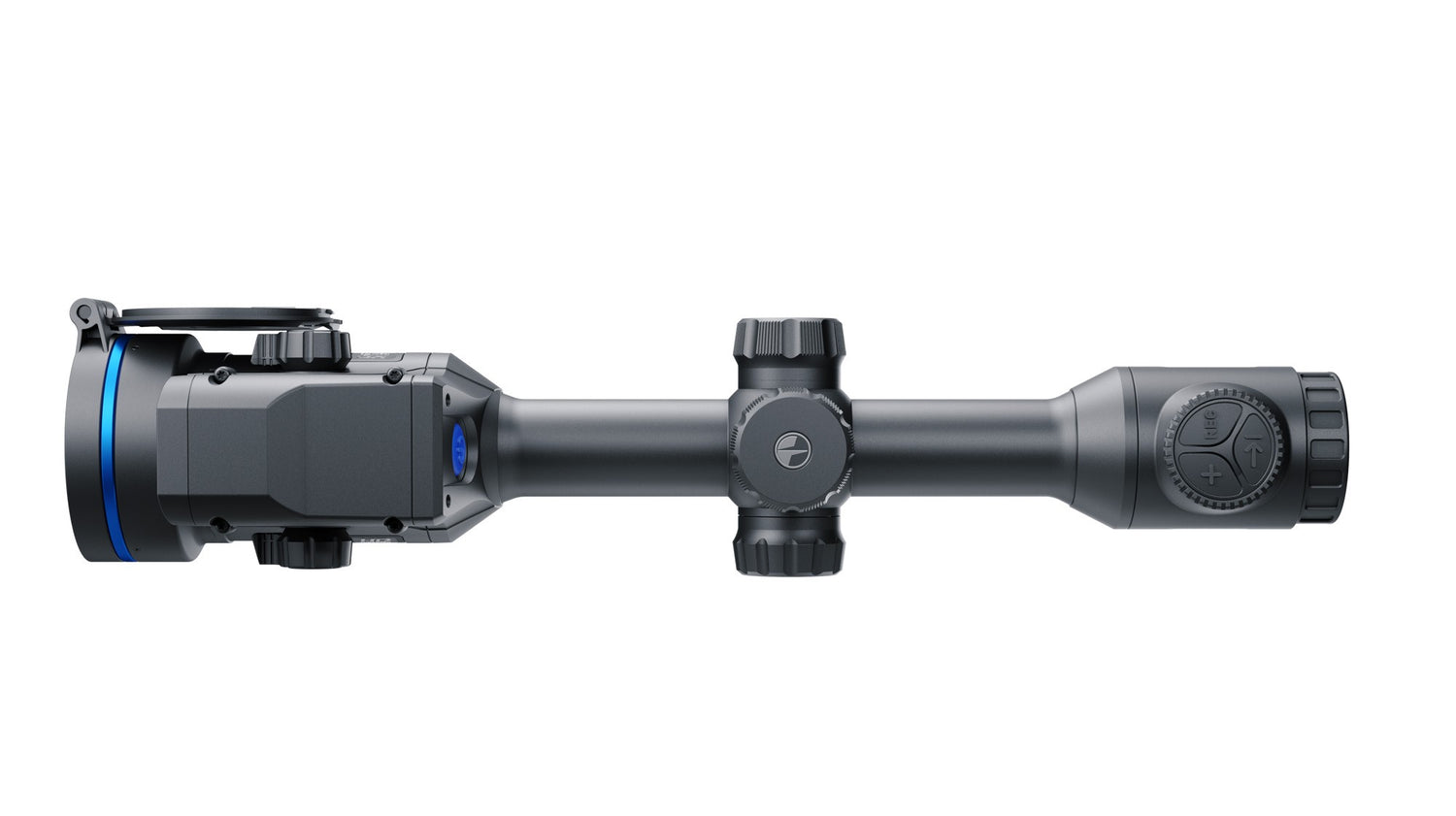

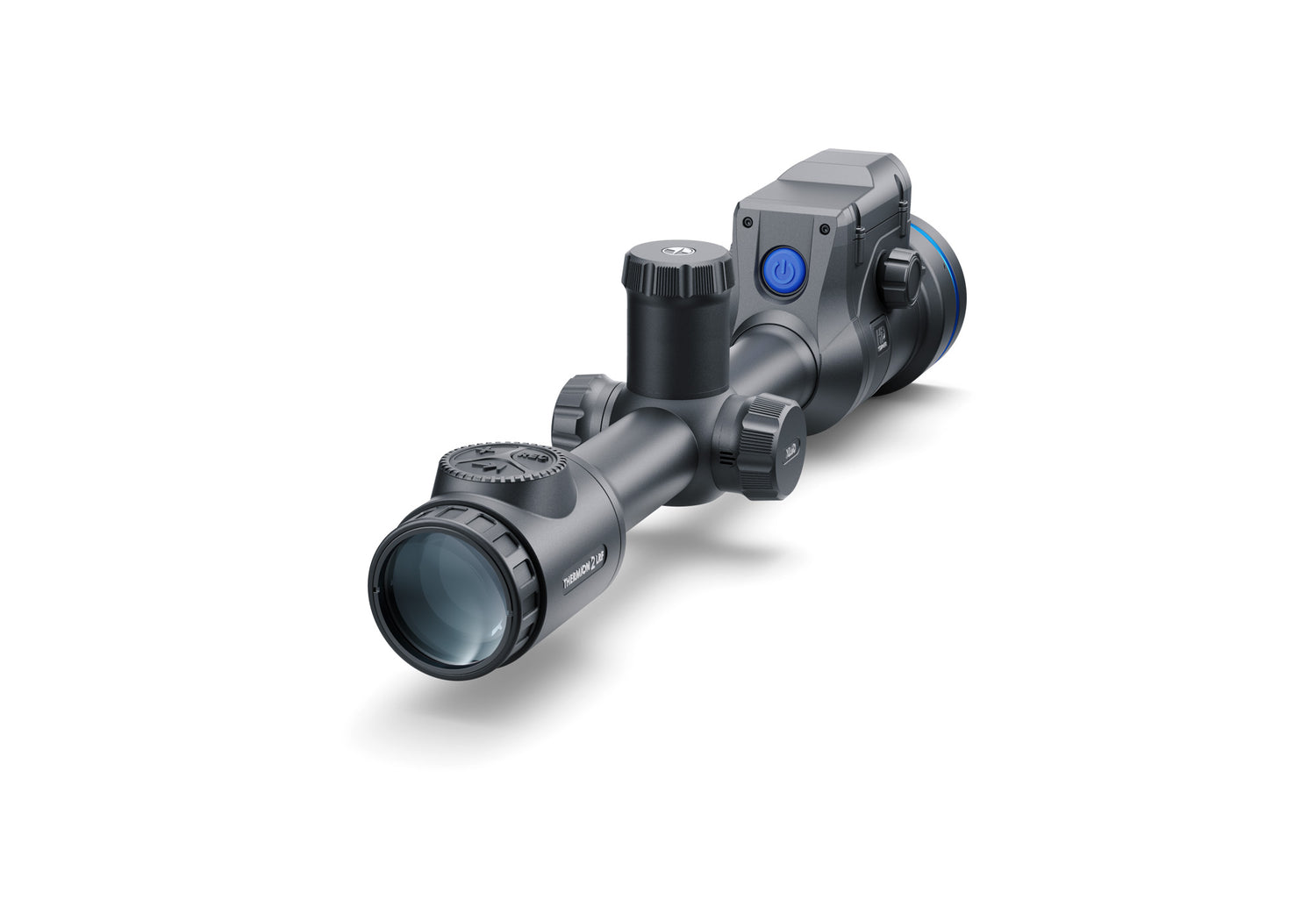

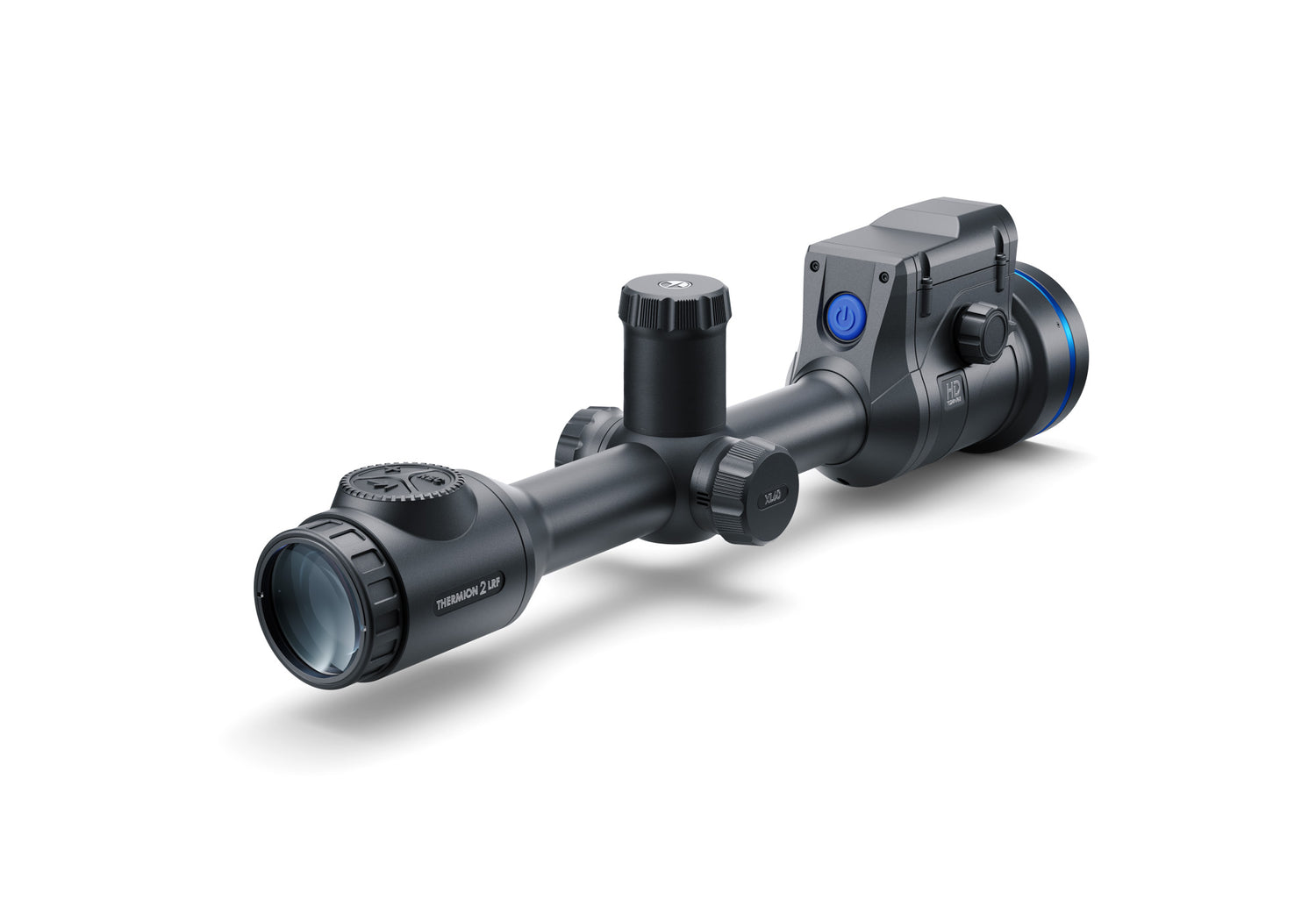

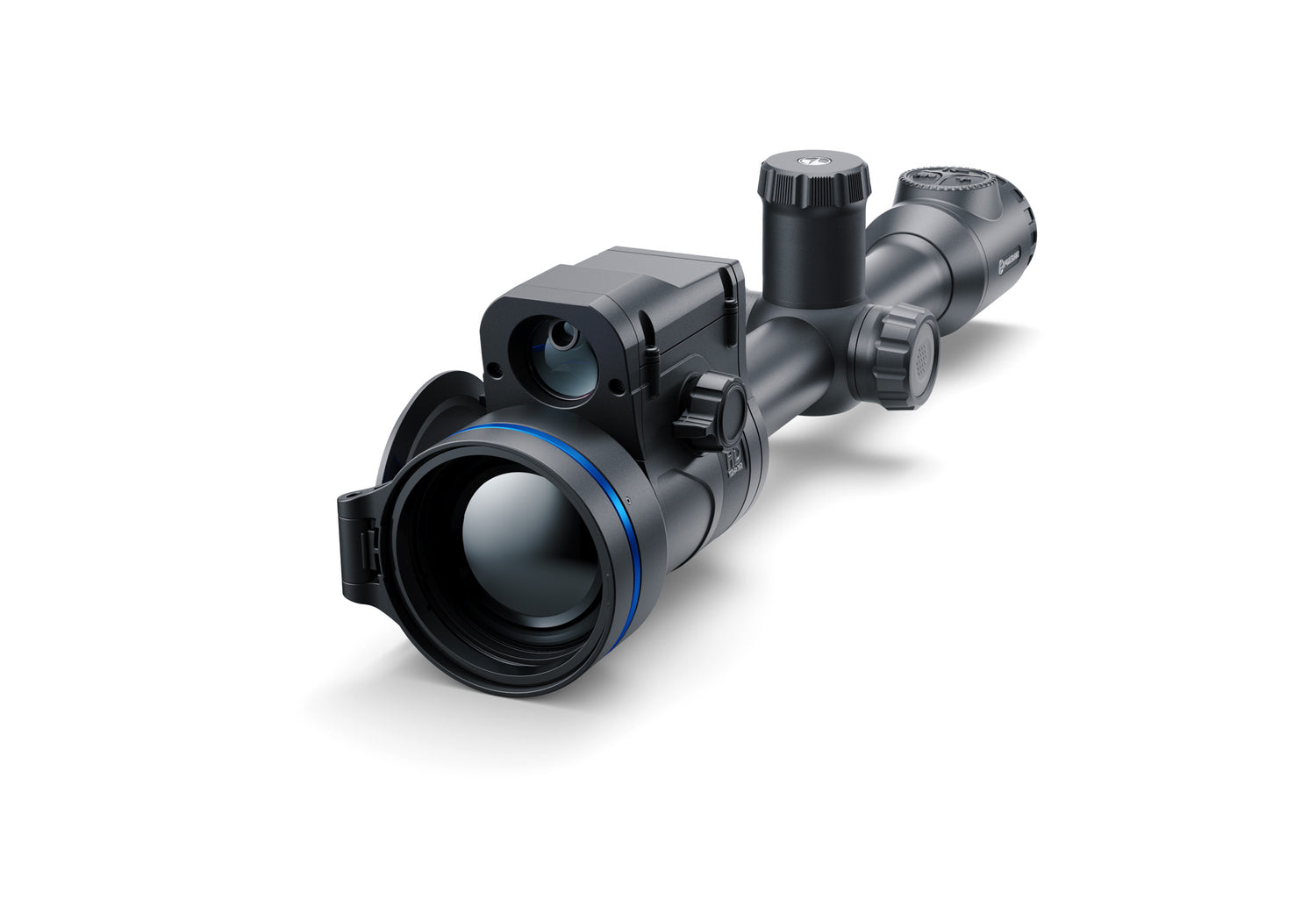

PULSAR THERMION 2 LRF XL60

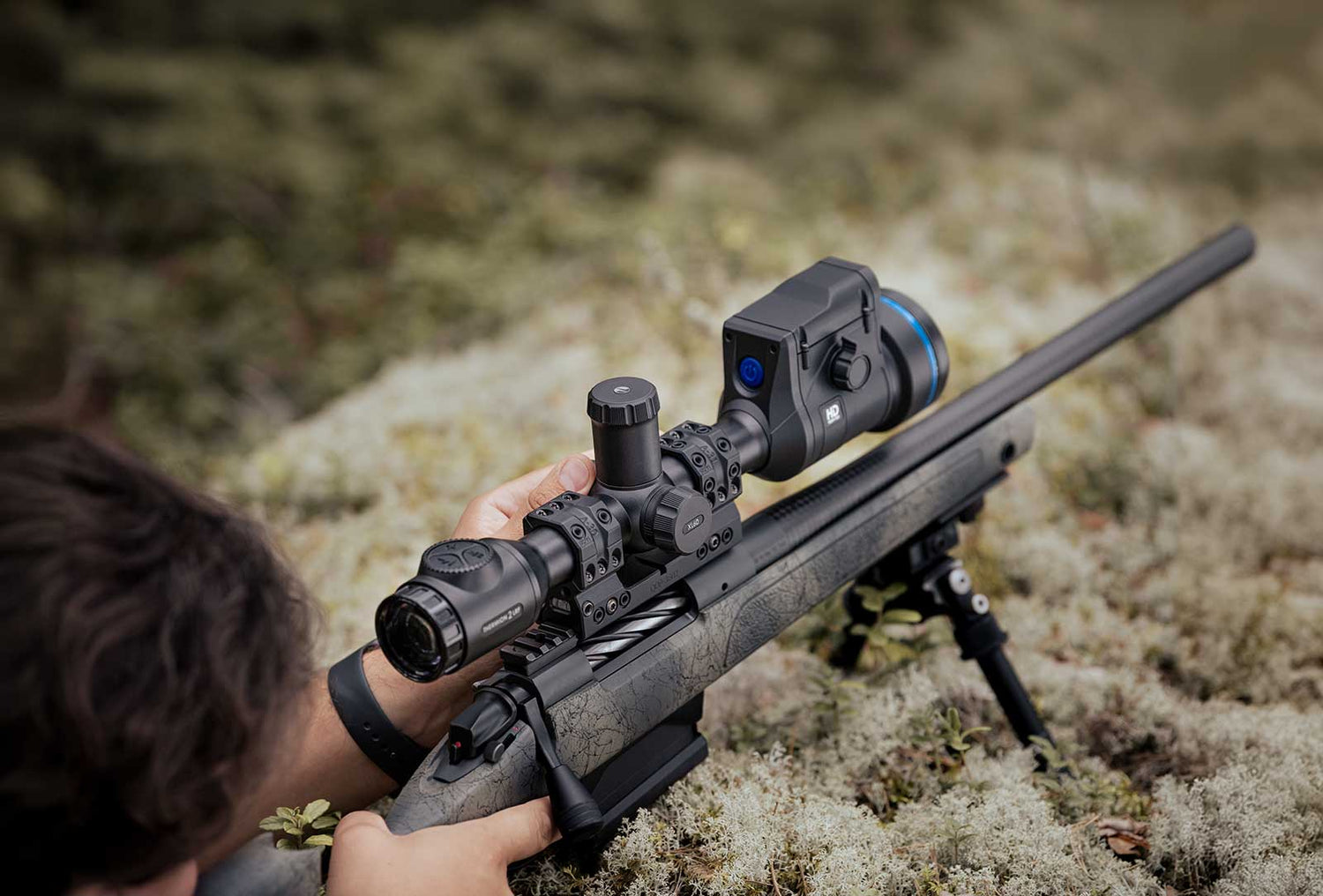

The XL, or HD resolution thermal imaging sensor, combined with the 60 mm optics of the Pulsar Thermion 2 LRF XL60, make it the optimum choice for pest and predator control.
MAIN SPECIFICATIONS
Sensor
@ 12 µm 1024x768
Objective lens
F60/1.1
Magnification, x
2.5 - 20
FOV (HxV), degrees
11.7
FOV (HxV), m@100m
20.5
Detection range
2800 m
RETICLE
Click range, H/V, mm at 100m
3200/3200
Click value, H/V, mm at 100m
16 mm – 2.5х, 8 mm – 5х, 4 mm – 10х, 2 mm – 20х
Number of preloaded reticles
10
SENSOR
Type
uncooled
Resolution, pixels
1024x768
Pixel pitch, µm
12
Sensor NETD, mK
< 35
System NETD, mK
< 20
Frame rate, Hz
50
OPTICS
Objective lens
F60/1.1
Magnification, x
2.5 - 20
FOV (HxV), degrees
11.7
FOV (HxV), m@100m
20.5
Eye relief, mm
65
DISPLAY
Type
Micro-OLED
Resolution, pixels
2560x2560
LASER RANGEFINDER
Max. measuring range, m
800
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
VIDEO RECORDER
Video / photo resultion, pixel
1280x960
Video / photo format
.mp4 / .jpg
Build-in memory, GB
64
BLUETOOTH
Wireless protocol
BLE 4.2
Wireless standard
IEEE 802.15.1
Frequency, Ghz
2,4
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +50
CONNECTIONS AND COMPATIBILITIES
Compatible mounts
Standard 30 mm rings
Supported application
Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber
12
Max. recoil power on rifled weapon (Eo), Joules
6000
POWER SUPPLY
Output voltage, V
3.0 – 4.2
Battery type
Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4900 mAh / DC 3.7 V (built-in)
Capacity, mAh
3200 (removable) + 4900 (built-in)
Operating time on battery pack, hat t=22°С
8
External power supply, V
5V (USB type-C)
WEIGHT & SIZE
Body material
Aluminum alloy
Dimensions, mm
442x84x98
Weight, kg
1.2
